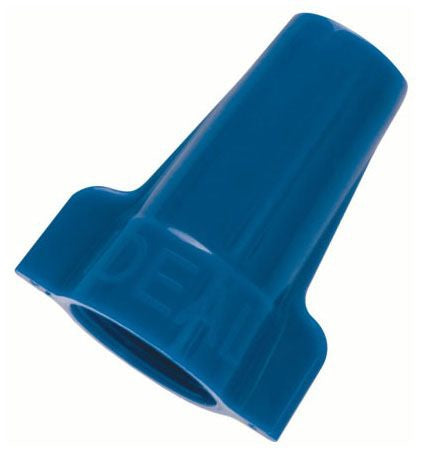

The Wing-Nut Wire Connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live-action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. It can also be reused on same size or larger combinations for quick and easy circuit changes and additions.

Specifications:

Type: Contoured Wing
Voltage Rating: 600 Volt
Wire Type: Solid and/or Stranded
Wire Size: 14 to 6 AWG
Minimum Wire Combination Size: (5 to 6) 14 AWG
Maximum Wire Combination Size: (1 to 2) 6 AWG
Package Qty: 25 pieces
Spring Type: Live Action
Shell Material: Zinc Plated Thermoplastic Polymer
Color: Blue
Temperature Rating: 221 Deg F
Approval: UL, CSA, IEC
