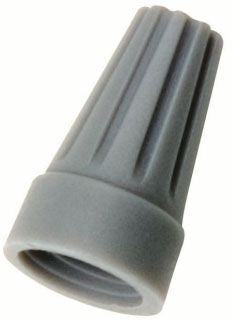

IDEAL Electrical WT1-1 Wire Connector

Out of stock
SKU: 68575
Regular price $0.09
OR

With five, color-coded connectors designed to accommodate hundreds of different solid or stranded wire combinations, WireTwist Wire Connectors offer an economical connector that brings a lot of value in comfort and performance. The fixed, live-action, square-wire spring threads itself as it draws wires into the connector, creating a secure pressure grip. The rugged, thermoplastic shell withstands extreme environments. The deep, wide-throated skirt protects against flashover and turned back strands providing excellent dielectric protection. The Combination WireTwist/WingTwist Kit offers one easy solution for all your twist-on wiring needs. This 620-piece kit features an assortment of all models and sizes of WireTwist and WingTwist Wire Connectors in a handy plastic storage case. Perfect for maintenance and small project applications where several different wire connectors are required.

Specifications:

Type: Positive Grip
Voltage Rating: 300 Volt (Connector), 1000 Volt (Fixture/Sign)
Wire Type: Copper
Wire Size: 22 to 14 AWG
Minimum Wire Combination Size: (3) #22
Maximum Wire Combination Size: (2) #16
Spring Type: Fixed, Square Wire
Shell Material: Zinc Plated Polypropylene
Color: Gray
Temperature Rating: 221 Deg F
Standard Package: 100 per Box
Approval: UL, CSA
