Applications:
Type SE, Style SER Service Entrance may be used as service-entrance conductors and in other applications where SE cables are permitted when installed as specified by NEC® dry locations at temperatures up to 90°C.

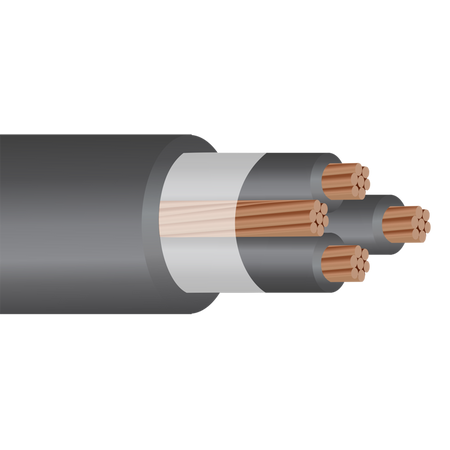

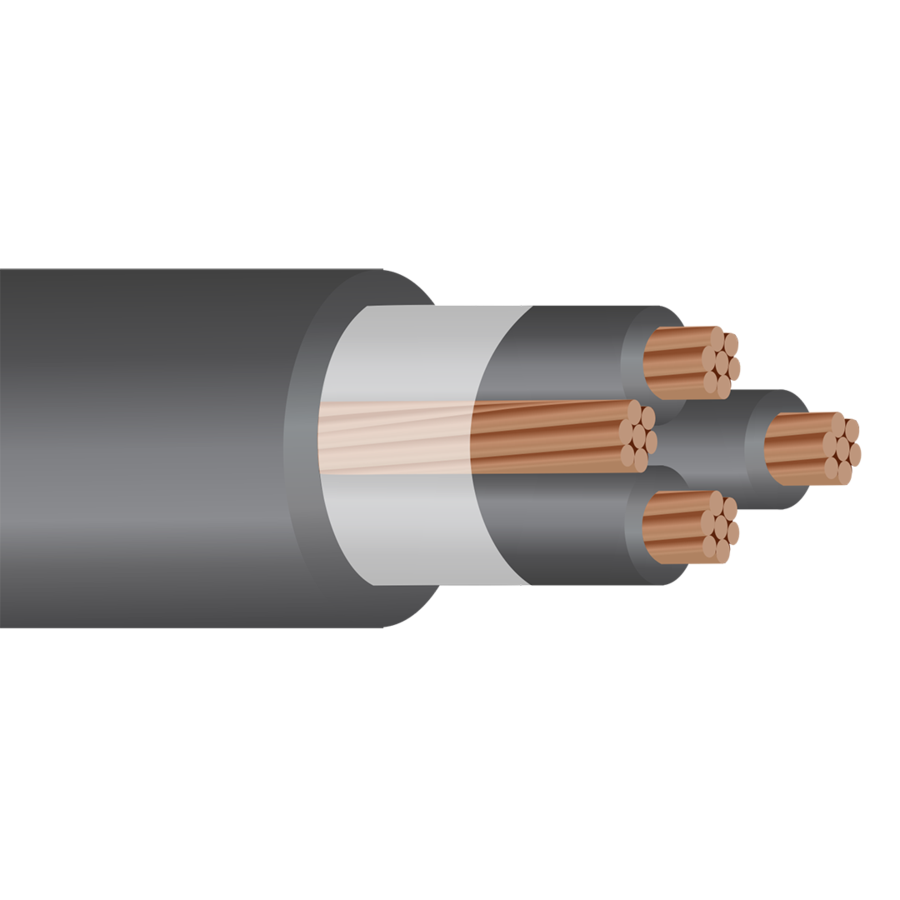

Construction:
Conductor: Stranded conductors: Uncoated copper per ASTM-B3, ASTM-B8, and ASTM-B787
Neutral: White PVC (polyvinyl chloride), rated 90°C Jacketed with white nylon (polyamide)
Jacket: Gray, sunlight-resistant PVC (polyvinyl chloride) jacket over the complete assembly

Standards:
- UL 83 (insulated conductors)
- UL 854 Service Entrance Cables, File No. 11098
- Federal Specification A-A-59544
- NFPA70: National Electrical Code

Specifications:
Conductor Size: 6 AWG
Ground Size: 6 AWG
Outside Diameter: 0.66 inches
Ampacity: 75 Amps at 90 Celcius
Weight: 0.411 pounds per foot
