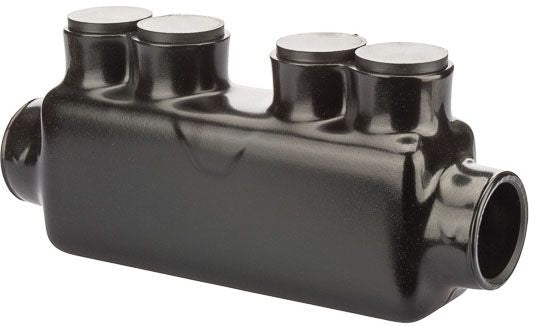

Suitable for Connecting Two Wires In-Line; Supplied with Removable Access Plugs Over the Hex Screw; Insulated with High Dielectric Strength Plastisol and Molded for Precise Fit; Abrasion, UV and Chemical Resistant; Will not Support Combustion

Specifications:

Type: In-Line
Voltage Rating: 600 Volt
Minimum Conductor Size: 250 KCMIL
Maximum Conductor Size: 750 KCMIL
Conductor Material: Copper/Aluminum
Number of Screws: 2
Hex Size: 5/16 Inch Diameter
Size: 7.25 Inch Length x 1.75 Inch Width x 3.25 Inch Height
Insulation Type: Plastisol Insulated
Approval: UL 486B, UL (Canada and US)
