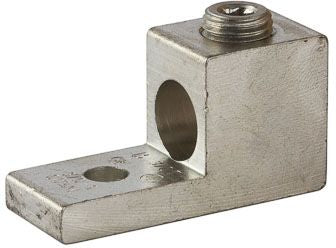

Versatile and Reusable Set-Screw Connectors Made of 6061T-6 Aluminum Alloy; Electro Tin Plated for Low Contact Resistance; For Use with Copper/Aluminum Conductors

Specifications:

Type: Set Screw
Number of Conductors: 1
Minimum Conductor Size: 4 AWG
Maximum Conductor Size: 500 KCMIL
Conductor Material: Copper/Aluminum
Pad Type: Straight
Screw Type: 3/8 Inch Hex Socket
Material: Aluminum
Number of Pad Holes: 1
Pad Size: 1.63 Inch Length x 1.2 Inch Width x 0.31 Inch Thickness
Stud Size: 0.406 Inch
Overall Length: 2.75 Inch
Approval: UL (Canada and US), UL 486A/B
