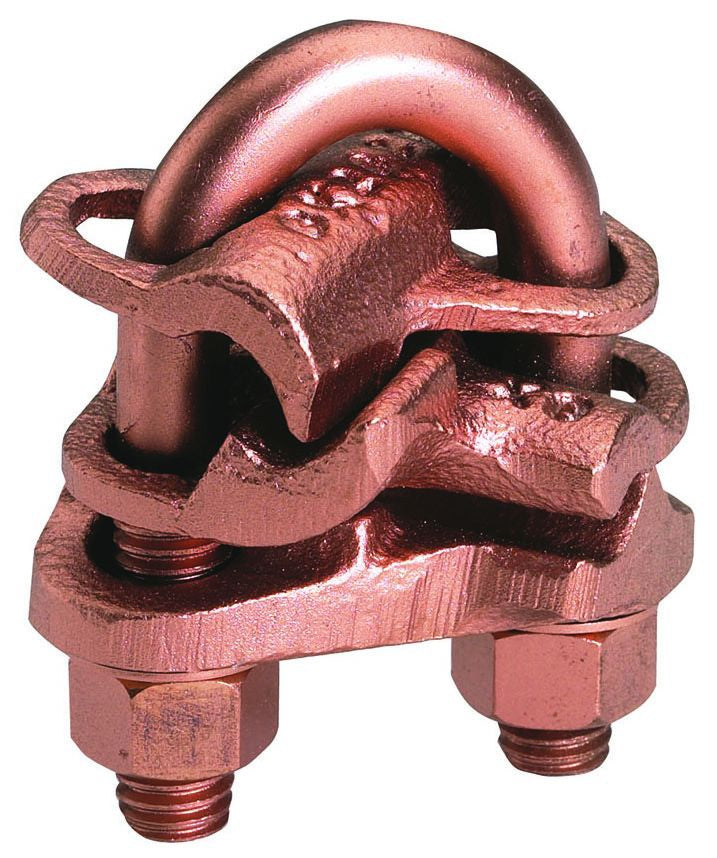

Burndy GX4C4C Mechanical Grounding Connector
Regular price
$138.88
Couldn't load pickup availability
High Copper Alloy Ground Connector for Cross Connecting a Wide Range of Cable; The High Copper Alloy Cast Body, Durium U-Bolts, Nuts, Lock Washer Make the GX Suitable for Burial in Soil or Concrete; 1-Wrench Installation; Acceptable for Direct Burial in Earth or Concrete
Specifications:
Conductor Size: 8 to 3 AWG Solid, 9 to 4 AWG Stranded (Copper, Run), 8 to 3 AWG Solid, 8 to 4 AWG Stranded (Copper, Tap)
Rod Size: 3/8 Inch

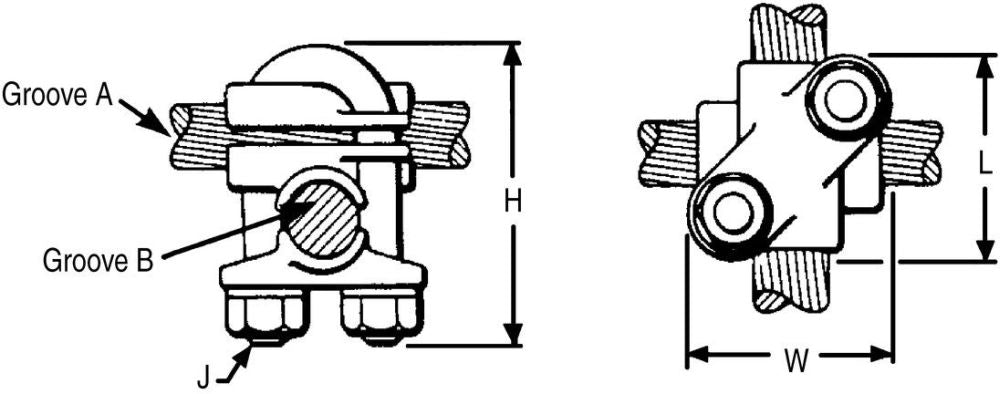

Size: 1-5/8 Inch L x 1-5/8 Inch W x 1-7/8 Inch H
Installation: U-Bolt to Rod
Material: Cast High Copper Alloy Body, Durium U-Bolt, Nut, Lockwasher
Approval: UL 467
Used On: Copper Cable to Rod, Direct Burial
