Bussmann series fuses play a major role in industrial or commercial facilities by providing reliable, maximum protection to power systems. Their physical size or rejection features prevent replacing a fuse with one from another fuse class. This helps ensure the correct replacement fuse is always installed and the voltage and interrupting ratings remain the same.

Specifications:

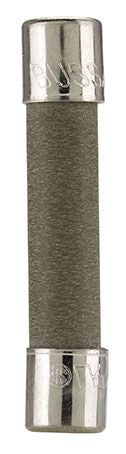

Type: Ceramic Tube
Characteristics: Fast Acting
Voltage Rating: 250 Volt AC, 125 Volt DC
Current Rating: 5 Amp
Interrupting Rating: 200 Amp at 250 Volt AC, 10000 Amp at 125 Volt AC/DC
Terminal Type: Ferrule
Diameter: 1/4 Inch
Length: 1-1/4 Inch
Approval: UL 248-14, CSA, CE
