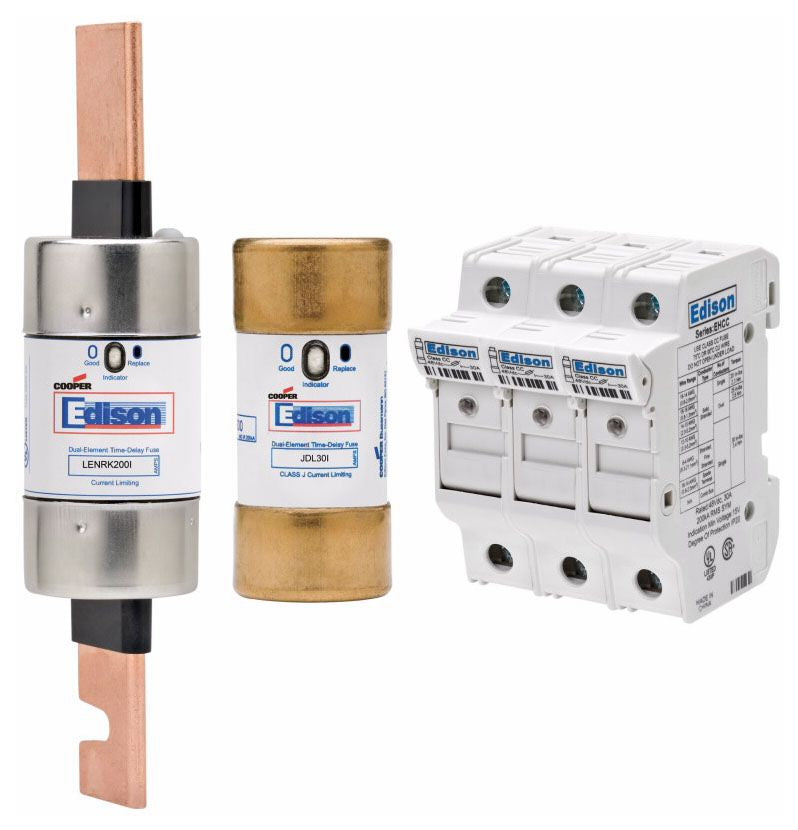

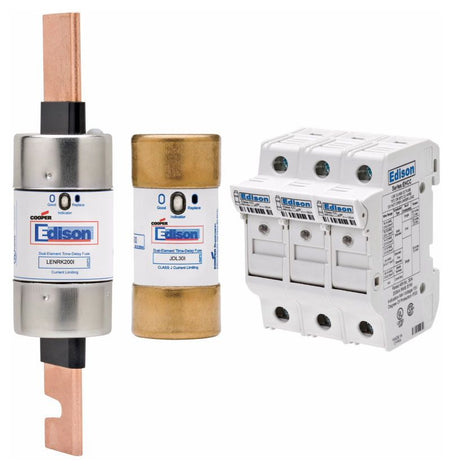

Edison's UL Class J fuse products are offered in both Dual-Element Time-Delay (JDL) and Fast-Acting (JFL) types. Both types have 200,000 amp interrupting rating at 600Vac RMS Sym amps. Their small physical size and high performance characteristics makes Class J fuses ideal for any space limited applications. Edison's JFL fuses are best suited for the protection of non-inductive loads such as resistive heating and lighting circuits.

Specifications:

Type: Class J
Characteristics: Dual Element, Time Delay
Voltage Rating: 600 VAC
Current Rating: 40 Ampere
Interrupting Rating: 200 Kiloampere (Symmetrical)
Terminal Type: Ferrule
Diameter: 1.06 Inch
Length: 2.38 Inch
Approval: UL, CSA C22.2
