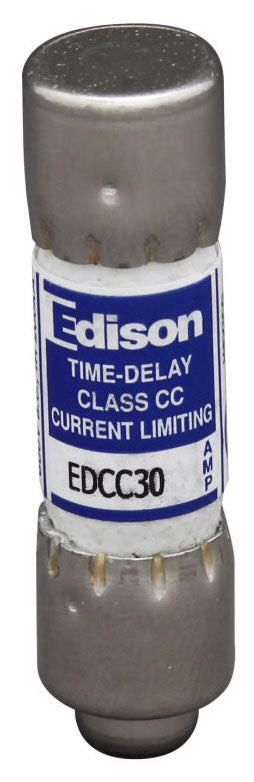

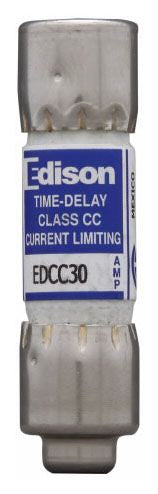

Bussmann EDCC30 Time Delay Fuse

Out of stock
SKU: 160769
Regular price $13.22
OR

Edison offers a complete line of Class CC fuses to meet your circuit and equipment protection needs. These branch circuit rated compact fuses rated 600v, and delivering 200,000a IR Vac Sym provide excellent protection in the smallest package of any UL class of fuses. Choose from our EDCC time-delay fuses for your small horsepower motor circuits, our HCLR fast-acting for your non-inductive lighting and resistance heating loads or our HCTR time-delay fuses for your small control transformer protection.

Specifications:

Type: Class CC
Characteristics: Time Delay
Voltage Rating: 600 VAC, 300 VDC
Current Rating: 30 Ampere
Interrupting Rating: 200 Kiloampere (Symmetrical), 20 Kiloampere (DC)
Terminal Type: Ferrule
Diameter: 0.41 Inch
Length: 1.5 Inch
Approval: UL, CSA C22.2, CE
