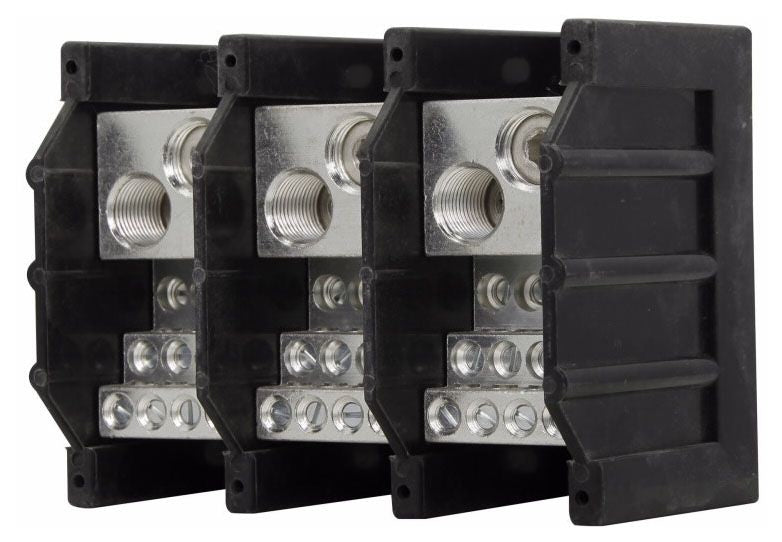

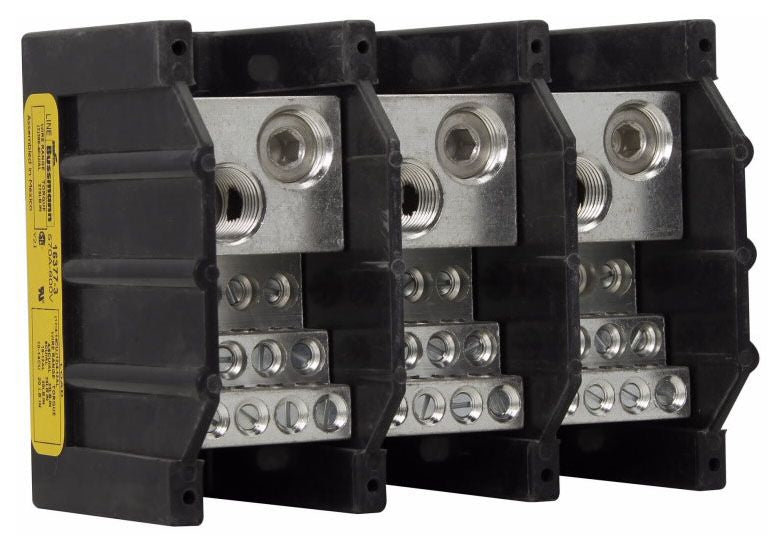

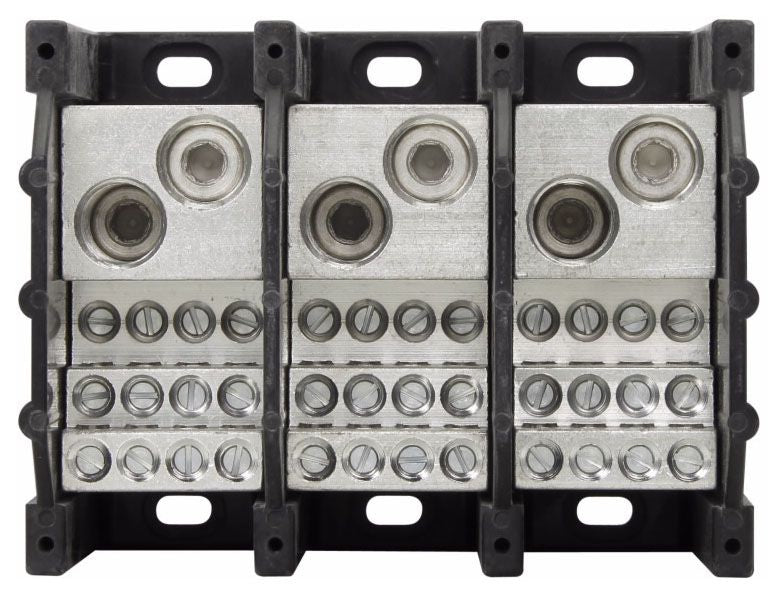

Bussmann 16377-3 Power Distribution Block

Out of stock
SKU: 166343
Regular price $195.31

UL Recognized power distribution blocks offer a variety of lineside and loadside port configurations for greater flexibility in panel wiring and wire management. These blocks are UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels.


Type: Barrier
Voltage Rating: 600 Volt AC/DC
Current Rating: 570 Amp
Number of Poles: 3
Number of Primary Openings per Pole: 2
Primary Opening Wire Size: 2/0 AWG to 300 KCMIL Copper/Aluminum (Stranded), 1/0 AWG Copper/Aluminum (Stranded), 2 to 1 AWG Copper/Aluminum, 4 AWG Copper/Aluminum (Stranded)
Number of Secondary Openings per Pole: 12
Secondary Opening Wire Size: 6 to 4 AWG Copper/Aluminum (Stranded), 8 AWG Copper, 8 AWG Aluminum (Stranded), 12 to 10 AWG Aluminum (Stranded), 14 to 10 AWG Copper
Conductor Material: Copper, Aluminum
Temperature Rating: 75 Deg C
Connector Material: Tin-Plated Aluminum
Color: Black
Approval: UL
