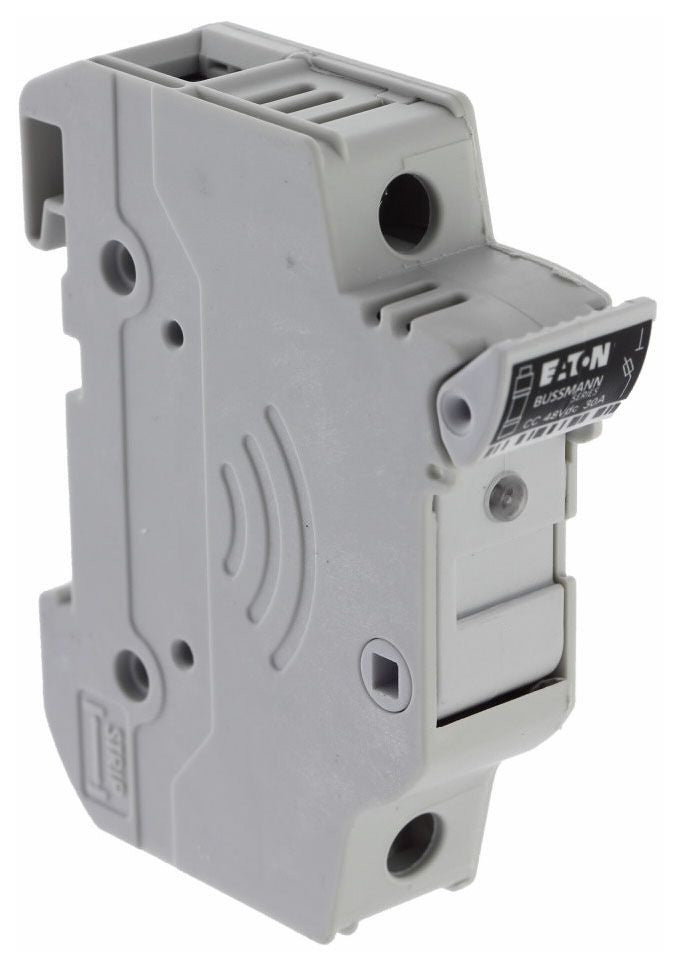

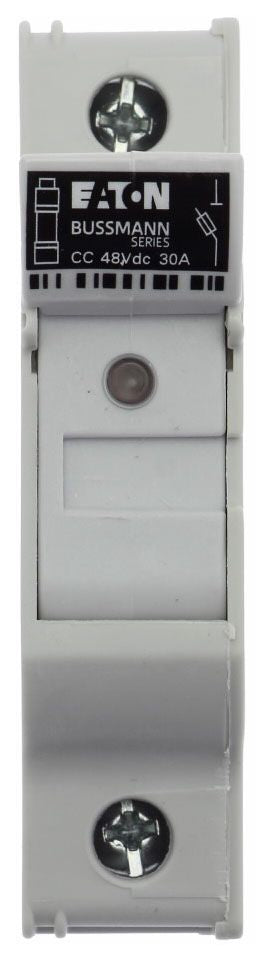

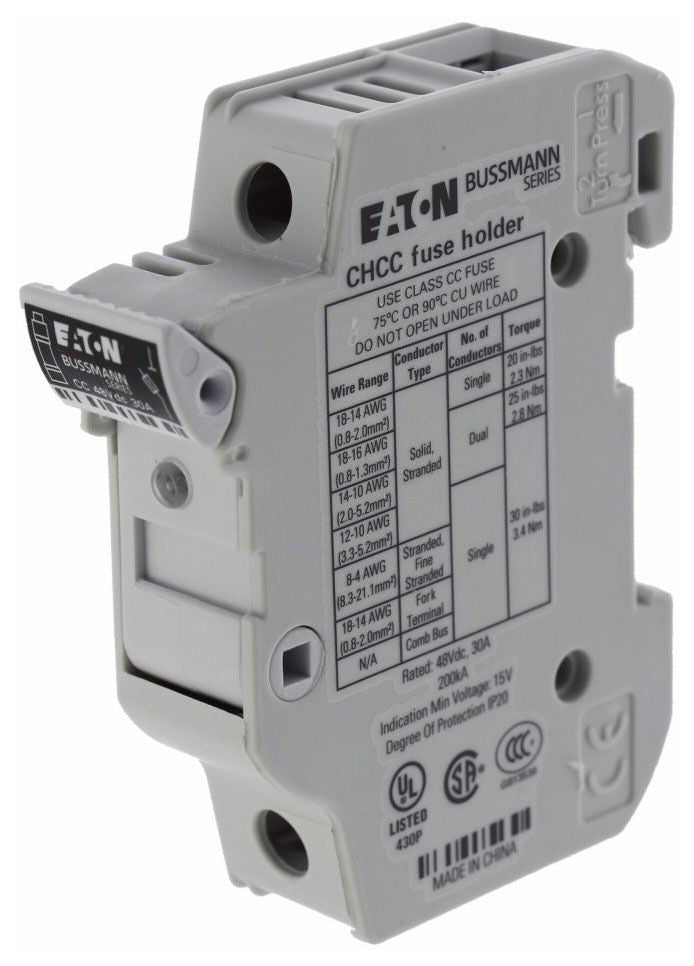

Bussmann CHCC1DI-48U Fuse Holder

Out of stock
SKU: 166565
Regular price $22.96

Bussmann series Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection.


Type: Modular Finger Safe
Number of Poles: 1
Fuse Type: Class CC
Voltage Rating: 48 Volt DC (UL)
Fuse Current Rating: 30 Amp (UL)
Line Wire Size: 18 to 4 AWG
Load Wire Size: 18 to 4 AWG
Mounting: 35 Millimeter DIN-Rail
Approval: UL, CSA 6225-01, CCC
