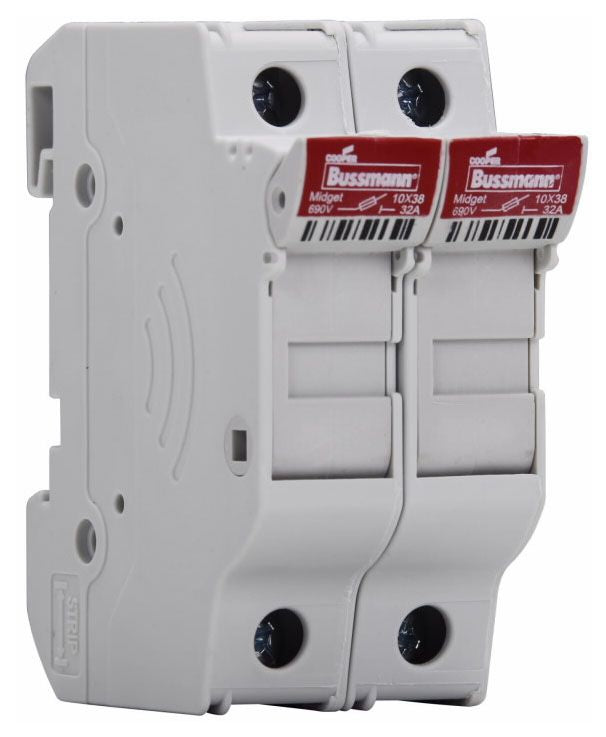

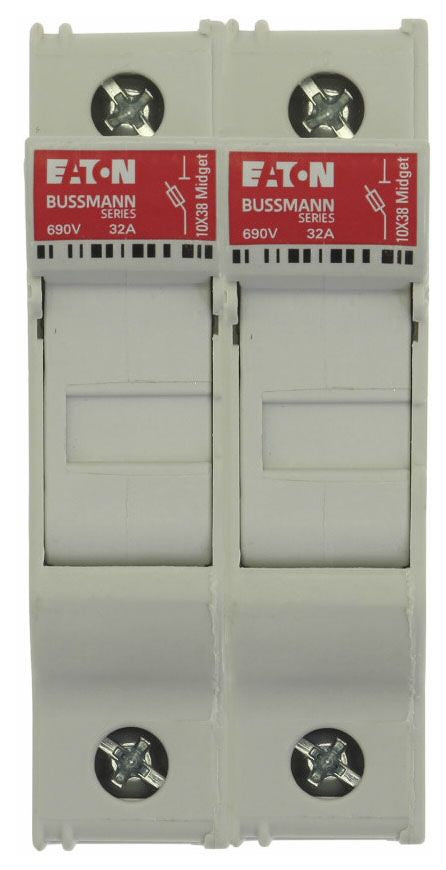

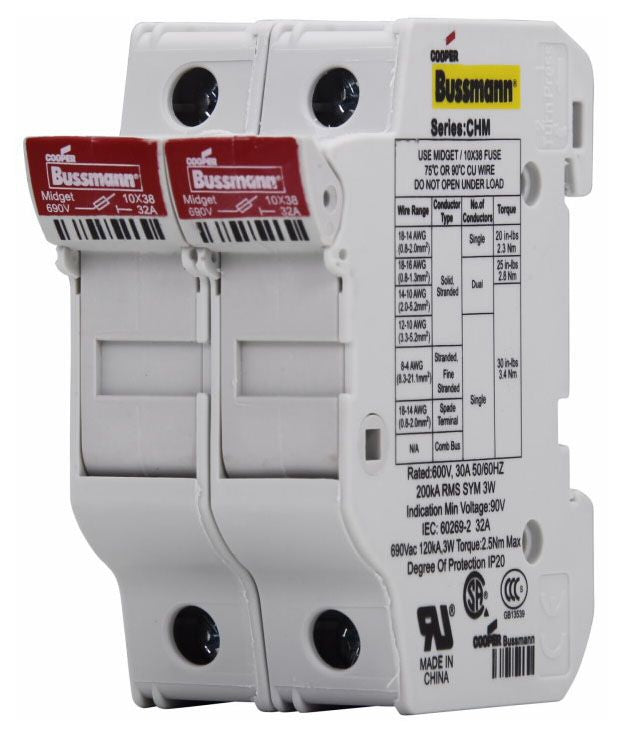

Bussmann CHM2DU Modular Fuse Holder

Out of stock
SKU: 166590
Regular price $40.11

High SCCR Rated, UL Listed Class CC Holder with Optional Open Fuse Indication; Enhanced Safety with IP20 Finger-Safe Construction; Agency Rating up to 1000 Volt DC for Use with Solar PV Fuse; RoHS Compliant


Type: Modular Finger Safe
Number of Poles: 2
Fuse Type: 10 Millimeter x 38 Millimeter
Voltage Rating: 600 Volt (UL), 690 Volt (IEC)
Fuse Current Rating: 30 Amp (UL), 32 Amp (IEC)
Line Wire Size: 18 to 4 AWG
Load Wire Size: 18 to 4 AWG
Mounting: 35 Millimeter DIN-Rail
Approval: UL, CSA 6225-30, CCC
