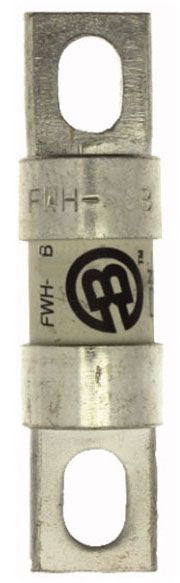

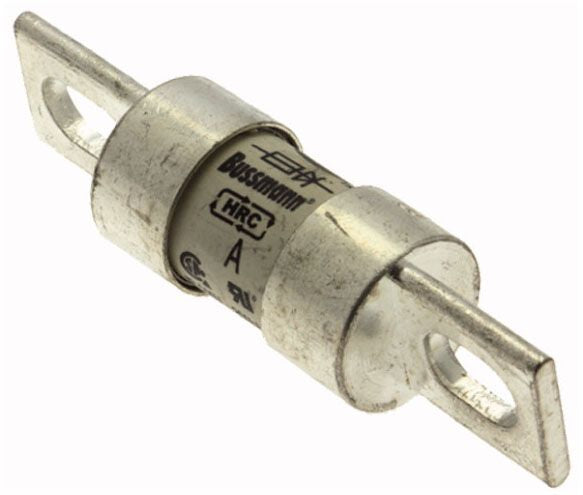

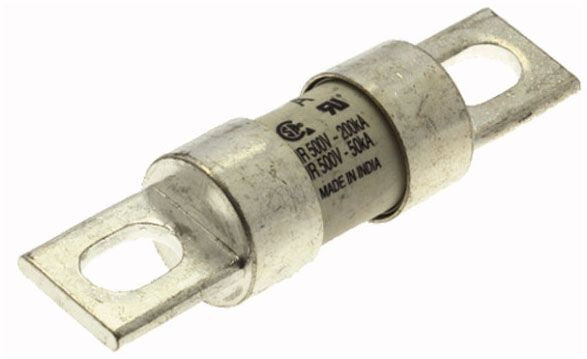

Bussmann series fuses play a major role in industrial or commercial facilities by providing reliable, maximum protection to power systems. Their physical size or rejection features prevent replacing a fuse with one from another fuse class. This helps ensure the correct replacement fuse is always installed and the voltage and interrupting ratings remain the same.

Specifications:

Type: Round
Characteristics: High Speed
Voltage Rating: 500 Volt AC/DC
Current Rating: 70 Amp
Interrupting Rating: 200 Kiloamp (Symmetrical), 50 Kiloamp at 500 Volt DC
Terminal Type: Blade
Diameter: 0.95 Inch
Length: 3.62 Inch
Approval: UL, CSA, CE
