Bussmann series fuses play a major role in industrial or commercial facilities by providing reliable, maximum protection to power systems. Their physical size or rejection features prevent replacing a fuse with one from another fuse class. This helps ensure the correct replacement fuse is always installed and the voltage and interrupting ratings remain the same.

Specifications:

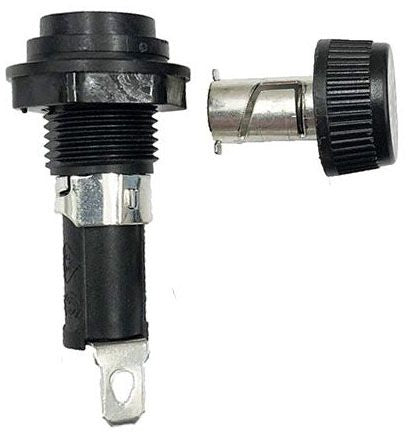

Type: Low Profile, In-Line, Rear Panel Hex Nut Mount
Housing Material: Thermoplastic
Fuse Type: Miniature
Fuse Size: 1/4 Inch x 1-1/4 Inch
Voltage Rating: 250 Volt
Current Rating: 20 Amp (UL), 16 Amp (CSA)
Cap Type: 1.69 Inch Knob
Terminal Type: 1/4 Inch In-line Quick Connect
Approval: UL, CSA, CE
