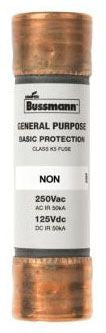

Bussmann series fuses play a major role in industrial or commercial facilities by providing reliable, maximum protection to power systems. Their physical size or rejection features prevent replacing a fuse with one from another fuse class. This helps ensure the correct replacement fuse is always installed and the voltage and interrupting ratings remain the same.

Specifications:

Type: Class K5/H
Characteristics: One Time, Non-Current Limiting
Voltage Rating: 250 Volt AC, 125 Volt DC
Current Rating: 5 Amp
Interrupting Rating: 50 Kiloamp (Symmetrical/DC)
Terminal Type: Ferrule
Diameter: 0.56 Inch
Length: 2 Inch
Approval: UL, CSA, CE
