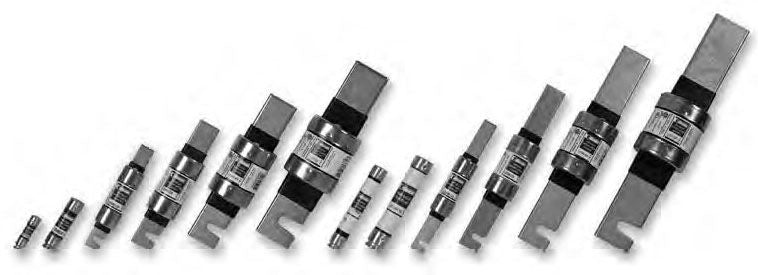

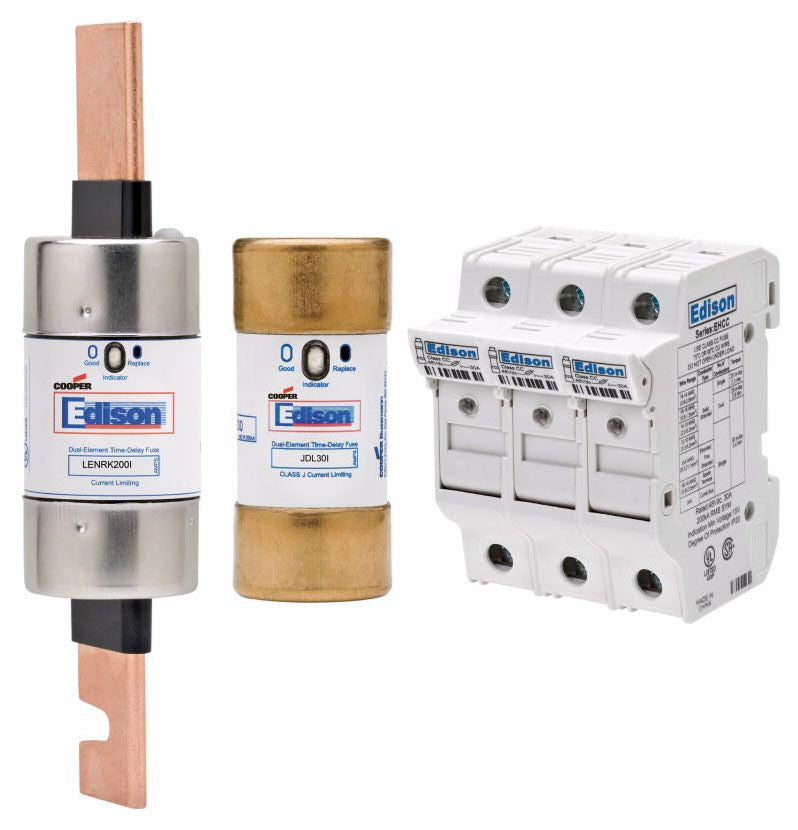

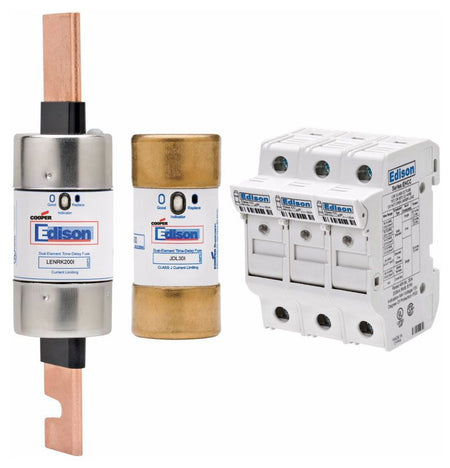

Edison offers a complete lineup of UL Class RK1 fuses with the LENRK and LESRK dual-element, time-delay fuses along with the NCLR and SCLR fast-acting fuses. Allows better selectivity for electrical power system designers and better short-circuit protection for breakers having inadequate interrupting ratings

Specifications:

Type: Class RK1
Characteristics: Dual Element, Time Delay
Voltage Rating: 250 VAC
Current Rating: 600 Ampere
Interrupting Rating: 200 Kiloampere (Symmetrical)
Terminal Type: Blade
Diameter: 2.86 Inch
Length: 10.38 Inch
Approval: UL, CSA C22.2
