3M 82-F1 Power Cable Splice Kit

  • Sale
  • Regular price $70.91
Shipping calculated at checkout.


3Mâ„¢ Scotchcastâ„¢ Flexible Power Cable Inline Splicing Kits 82-F Series are a Series of Flexible Inline Splices for Use on Non-Shielded Portable Power Cables and Cords; They are Designed to be Used on Single and Multiple Conductor Cables and Cords Rated up to 1000 Volts; The Splice Kits are Based on 3Mâ„¢ Scotchcastâ„¢ Flame Retardant Compound 2130 for Toughness, Flexibility, Moisture Sealing and Flame Retardancy; They are Permanent Splices as Assigned by the Mine Safety and Health Administration; The Completed Splices are Designed for Use in Weather-Exposed, Direct Burial or Submerged Locations

Specifications:

Type: In-Line
Voltage Rating: 1 Kilovolt (2-Conductor), 5 Kilovolt (Single Conductor)

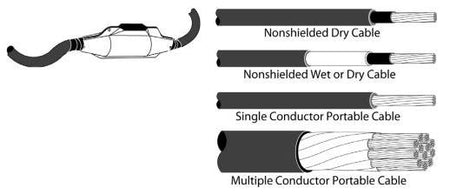

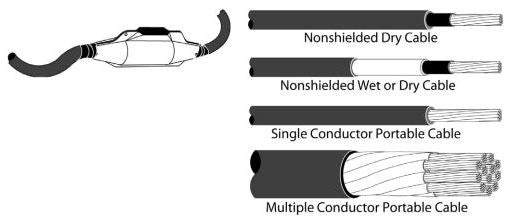

Cable Type: Single and Multiple Conductor, Non-Shielded Dry/Wet Portable
Number of Conductors: 1 and 2
Insulator Type: Resin
Connector Type: Compression (Not Included)
Conductor Size: 6 to 1/0 AWG
Cable Insulation Outer Diameter: 0.25 to 0.8 Inch
Contents: 1-Piece Removable Mold, Scotchcast Flame Retardant Compound, Scotch Rubber Splicing Tape, Three-M-Lte Elek-Tro-Cut Grit Abrasive Cloth
Approval: MSHA
