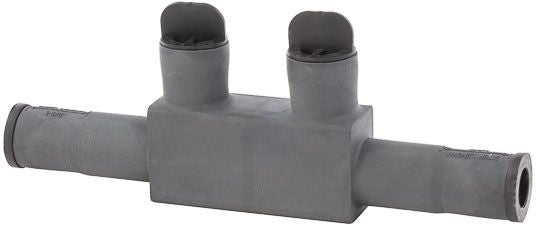

Manufactured from High Strength 6061T-6 Aluminum Alloy, Providing Premium Electrical and Mechanical Performance; Radial Tipped Set Screws Reduce Conductor Strand Damage and the Range Taking Design Allows for Many Sizes and Types of Conductors All in One Connector; Encapsulated in Rubber with a Nominal Thickness of 125 Mils and High Dielectric Strength; Abrasion and Chemical Resistant, UV Resistant; Will Not Support Combustion

Specifications:

Conductor Material: Copper/Aluminum
Minimum Conductor Size: 12 AWG
Maximum Conductor Size: 350 MCM
Terminal Type: Set Screw
Number of Terminals: 2
Material: 6061-T6 Aluminum Alloy
Size: 8.83 Inch Length x 1.25 Inch Width x 3.38 Inch Height
Approval: UL 486D, UL (Canada and US)
