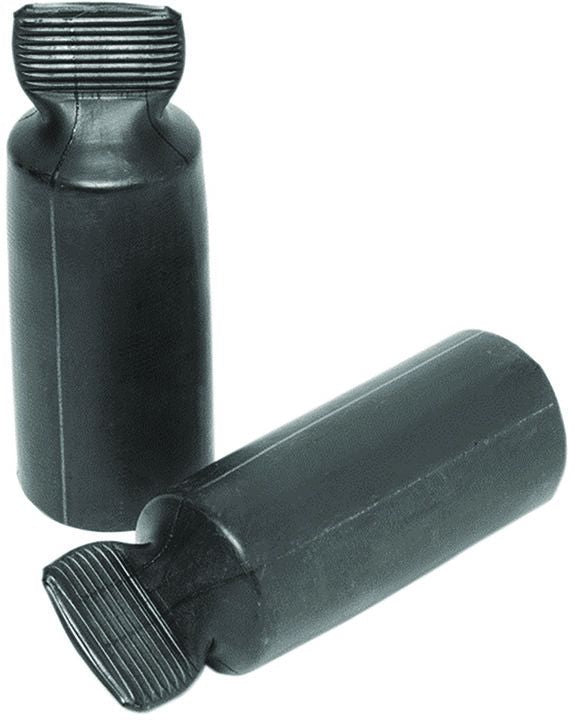

Burndy HSIC440FR End Cap
Regular price
$187.67
Couldn't load pickup availability
Minimum 28 Oxygen Index, UL 94-VO Rated; Self-Extinguishing Flame Retardant Properties; Thermal Chromatic Lines Indicate Proper Installation; Low Shrink Temperature 150 Deg C, Only Requires Common Hot Air Gun to Apply; RoHS Compliant
Specifications:
Type: Cable End Cap
Construction: Heat Shrink
Voltage Rating: 600 V
Cable Type: Aluminum/Steel/Polyetylene/EPR/PVC
Conductor Size: 4 to 4/0 AWG (Code), 4 to 2/0 AWG (Flex)

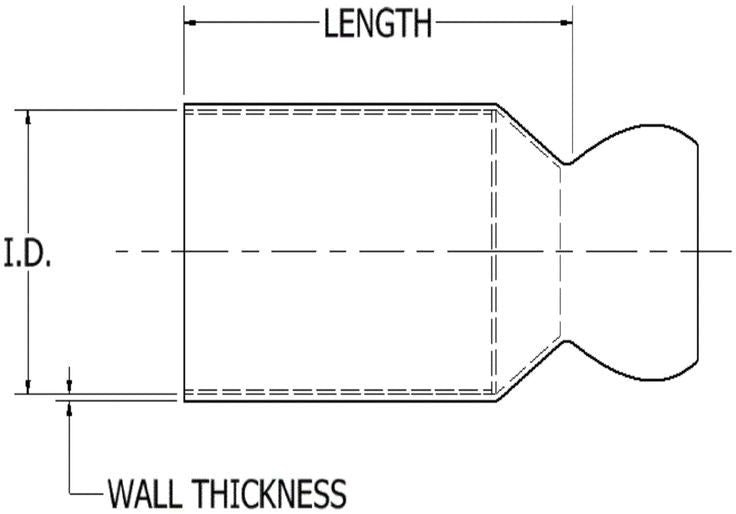

Minimum Expanded Diameter: 0.75 Inch
Maximum Recovered Diameter: 0.24 Inch
Recovered Wall Thickness: 0.8 Inch
Length: 3.5 Inch (Expanded), 2.5 Inch (Recoverable)
Shrink Ratio: 12/30/1899 3:01:00 AM
Material: Polyolefin
Approval: UL
