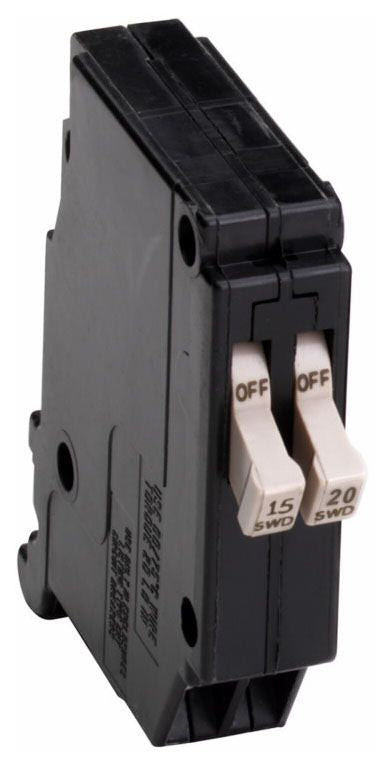

Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.

Specifications:

Number of Poles: 1
Voltage Rating: 120/240 VAC
Current Rating: 15 to 20 Ampere
Interrupting Rating: 10000 Ampere
Wire Size: 14 to 8 AWG (Aluminum/Copper)
Mounting: Plug-On
Used On: CTL, Non-CTL CH Load Center
