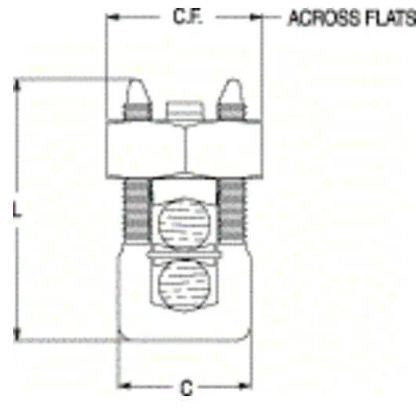

High Strength, Copper Alloy Servit Split-Bolt with Spacer; Spacer Separates Dissimilar Conductors and Provides Long Contact Length that Prevents High Pressure Point Contacts Between Run and Tap Conductors

Specifications:

Installation: Spacer
Conductor Material: Aluminum/Copper/ACSR/AAAC/5005/Steel
Minimum Run Conductor Size: 400 KCMIL (Aluminum/Copper), 336 KCMIL (ACSR/AAAC/5005)
Maximum Run Conductor Size: 500 KCMIL (Aluminum/Copper), 477 KCMIL (ACSR/AAAC/5005)
Minimum Tap Conductor Size: 2 AWG Stranded (Aluminum/Copper), 2 AWG (ACSR/AAAC/5005)
Maximum Tap Conductor Size: 500 KCMIL (Aluminum/Copper), 477 KCMIL (ACSR/AAAC/5005)
Material: Tin Plated Copper Alloy
Approval: UL, CSA
