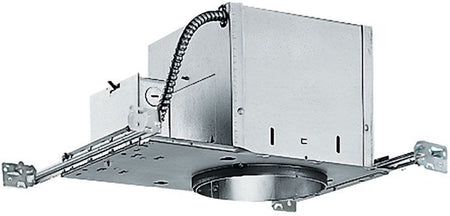

The IC-rated 6-inch high wattage double wall construction housing can be completely covered with insulation. The energy-efficient housing features an Air-Loc installation to stop infiltration and exfiltration of air, reducing heating and cooling costs.

Specifications:

Type: Universal Housing
Lamp Type: A19/A21/BR30/BR40/MR16/PAR16/PAR20/PAR30/PAR30L/PAR38/R20/R30
Lamp Mounting Position: Vertical
Nominal Aperture Size: 6 Inch
Aperture Shape: Round
Ceiling Type: Insulated
Ceiling Opening Size: 6-7/8 Inch
Installation: New Construction
Height: 7-1/2 Inch
Housing Material: 0.032 Inch Thk Aluminum Housing, 22 Gauge Die-Formed Galvanized Steel Frame
Junction Box Type: Pre Wired with (6) 1/2 Inch, (1) 3/4 Inch Knockout, (6) 12 AWG 90 Deg C Branch Circuit Conductor, (4) Non-Metallic Sheathed Cable Connector
Application: Damp Location
Approval: UL, CUL, CSA
