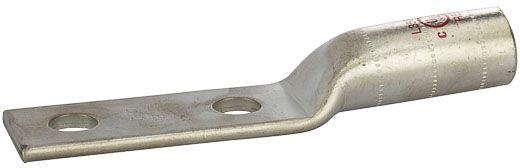

Produced from High Conductivity Copper Tubing; Allows Easy Inspection of the Termination to Assure Complete Cable Insertion; Tin Plated to Provide Corrosion and Low Contact Resistance; Marked with Die Index and Color Coded; Listed for 35 Kilovolt Maximum when Properly Installed; For Applications Greater than 2000 Volt, Installed to Cable Manufacturer for Voltage Stress Relief Instructions

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 8 AWG Stranded
Barrel Type: Long
Barrel Length: 0.98 Inch
Pad Size: 1.14 Inch Length x 0.42 Inch Width x 0.08 Inch Thickness
Number of Pad Holes: 2
Pad Hole Spacing: 1 Inch
Stud Size: 1/4 Inch
Color: Red
Die Index: KC12-8 (NSI/Greenlee), ILD-1/ILD-21 (ILSCO), U8CRT (Burndy), 15520 (T and B)
Material: Tin Plated Copper
Overall Length: 2.24 Inch
Approval: UL 486/486A/467, UL (Canada and US)
