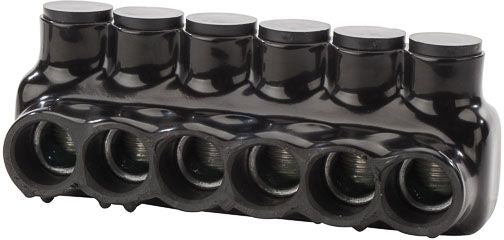

NSi Industries IPLD350-6 Multi-Tap Conductor Connector

Out of stock
SKU: 4321
Regular price $109.26
OR

Wire Entry Ports on Both Sides of the Connector Allow for Access from Either Side; Eliminates the Need for Cover and Taping; Insulated with High Dielectric Strength Plastisol; Molded for Precise Fit and Supplied with Removable Access Plugs Over the Hex Screws; Supplied with Removable Plugs to Close the Entry Port not Being Utilized; Abrasion, Chemical and UV Resistant; Will Not Support Combustion; Dual Rated Provides Flexibility in Use of Conductor and Associated Cost Savings; Saves Time and Money by Not Having to Insulate Using Tape or Other Insulate Materials; Versatility in Configuration Accommodates Most any Applications; Tough Impervious Plastisol Allows Connector to be Used in Harsh Vibration Prone Conditions; Additives Slow the Process of Plastisol Breakdown Under UV Intense Conditions; Allows Installation and Operation in the Harshest of Working Environments; Applications that Require Special Dimensional or Wire Port Arrangements May be Fulfilled with a UL Listed Custom Special Meeting Your Project Needs in a Very Short Period of Time

Specifications:

Voltage Rating: 600 Volt
Number Of Ports: 6
Cable Entry: 2-Side Entry
Conductor Material: Aluminum/Copper
Minimum Conductor Size: 6 AWG
Maximum Conductor Size: 350 KCMIL
Body Material: Black Plastisol
Approval: UL (Canada and US), UL 486B
