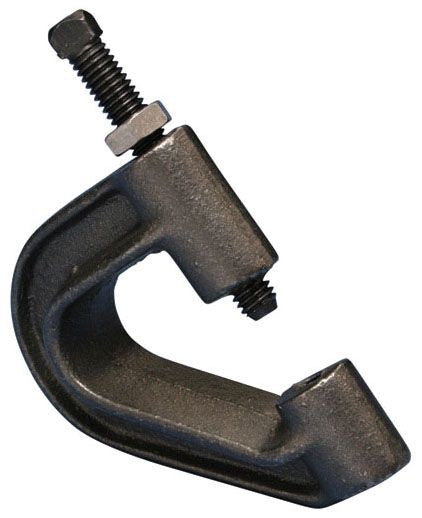

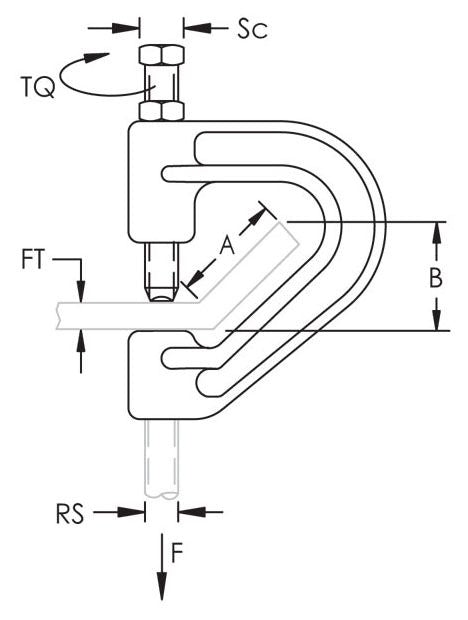

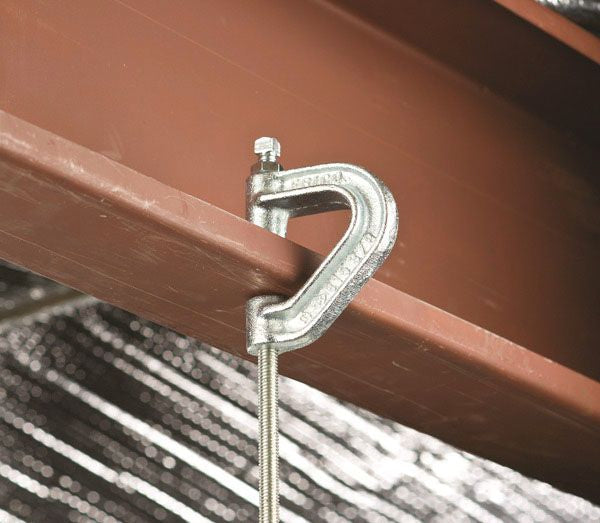

Attaches to Lower Flange of Metal Beams or Purlin; Supports 45 Degree Flanges up to 2 Inch Long and 90 Degree Flanges up to 1-1/2 Inch High; Conforms with Federal Specification WW-H-171 (Type 23); Setscrew Must be Tightened and Torqued onto the Sloped Side of the I-Beam

Specifications:

Type: Purlin Clamp
Purlin/Beam/Flange Size: 1 Inch
Conduit/Cable Size: 3/8 Inch (Rod)
Material: Electrogalvanized Cast Iron
Installation: Set Screw
Load Capacity: 400 Lb
Standard Package: 25
Approval: UL (Canada and US), FM
