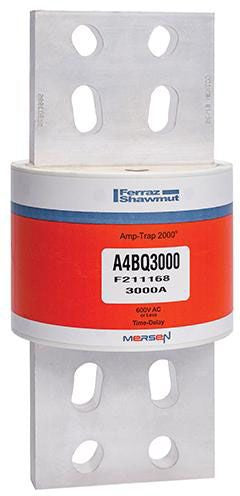

Amp-Trap 2000 A4BQ fuses are 20% more current-limiting than any other Class L fuse on the market. When correctly coordinated, they bring a superior level of protection to service entrance equipment. Downstream circuit components have maximum protection against short circuit let-thru current. A4BQ's built-in, 4-second time-delay characteristic (at 500% of rated current) accommodates harmless inrush currents without nuisance opening.

Specifications:

Type: Class L
Characteristics: 4 Sec Time Delay (at 500 Percent Rated Load)
Voltage Rating: 600 VAC, 500 VDC
Current Rating: 3000 Ampere
Interrupting Rating: 200 Kiloampere (AC), 100 Kiloampere (DC)
Terminal Type: Blade
Diameter: 5 Inch
Length: 10-3/4 Inch
Approval: UL 248/248-10, CSA C22.2
