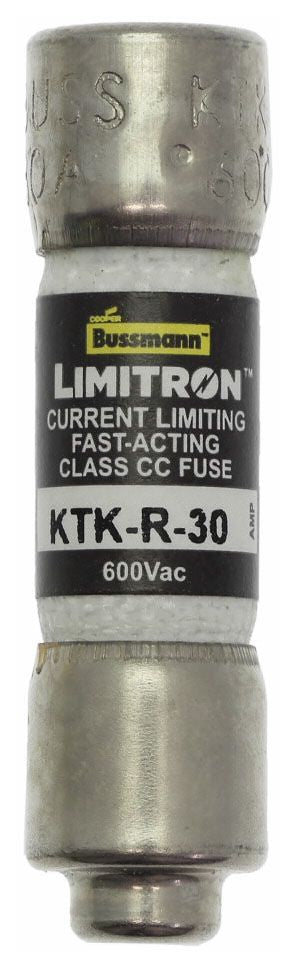

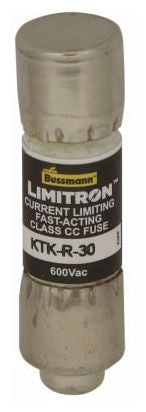

Bussmann series fuses play a major role in industrial or commercial facilities by providing reliable, maximum protection to power systems. Their physical size or rejection features prevent replacing a fuse with one from another fuse class. This helps ensure the correct replacement fuse is always installed and the voltage and interrupting ratings remain the same.

Specifications:

Type: Class CC Rejection
Characteristics: Fast Acting, Non-Indicating, Current Limiting
Voltage Rating: 600 Volt AC
Current Rating: 2-1/2 Amp
Interrupting Rating: 200 Kiloamp (Symmetrical)
Diameter: 0.41 Inch
Length: 1.5 Inch
Approval: UL 248-4, CSA C22.2, CE
