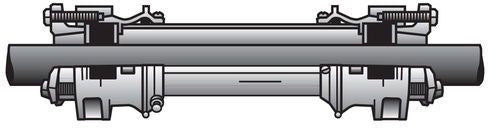

O-Z/Gedney thru wall and floor seals provide a positive means of sealing pipe, conduit or tube where they pass through a concrete foundation of a structure below grade or below ground water level or at entry points through a concrete wall or floor which must be sealed. The usual methods of making installations, such as using straight sleeves or pitch pockets, are generally not satisfactory for their effectiveness depends upon the skill and care of the installer. If the installation is not effective, leakage will occur. Considerable time and effort may be required to remake the seal. The O-Z/Gedney thru wall and floor seals assure watertight installations.

Specifications:

Constructional Feature: Watertight, Corrosion Resistant
Trade Size: 1-1/4 Inch (Conduit/Steel Pipe), 1-1/2 Inch (Copper Tube)
Outer Diameter: 1.66 Inch (Conduit/Steel Pipe), 1.625 Inch (Copper Tube)
Wall Thickness: 8-3/8 to 16 Inch
Material: Epoxy Zinc Coated Malleable/Ductile Iron
