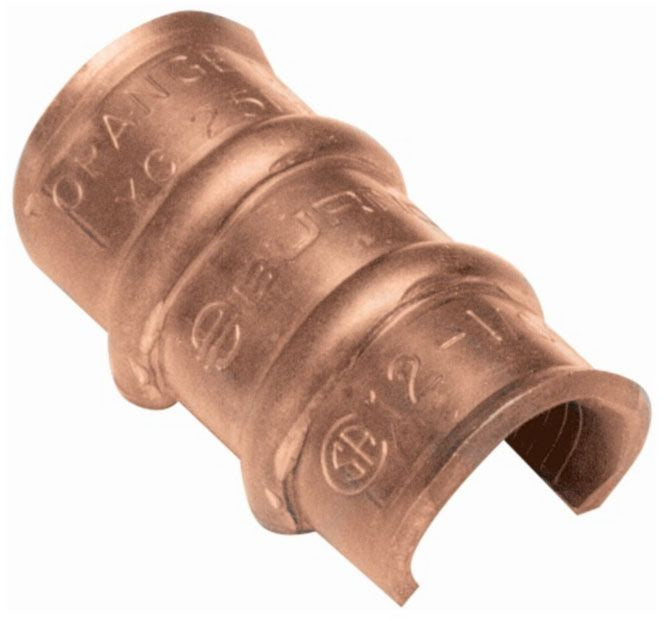

Bare Copper Range-Taking C-Tap that Allows for Less Inventory as One C-Tap Can Accommodate a Multitude of Wire Combination; Reinforced Rib on the Outside of the C-Tap Increases the Mechanical Holding Strength of the Connection; Creates a Compact Connection that Allows for Easy Taping and Insulating; Connectors Include a Color Dot to Ensure Proper Die and Installation Tooling is Selected; Manufactured from High Conductivity Wrought Copper Providing Low Resistance for Excelled Electrical Conductivity; RoHS Compliant

Specifications:

Voltage Rating: 600 V
Shape: C
Number of Taps: 1
Conductor Material: Copper
Minimum Run Conductor Size: 2 AWG Solid/Stranded
Maximum Run Conductor Size: 1/0 AWG Solid/Stranded
Minimum Tap Conductor Size: 12 AWG Solid/Stranded
Maximum Tap Conductor Size: 2 AWG Solid/Stranded
Die Index: 14
Body Material: Tin Bright Wrought High Conductivity Copper
Approval: UL, CSA
