1/0-1/0-1/0 Aluminum SER Cable with # 2 Ground Wire

  • Sale
  • Regular price $8.78
Shipping calculated at checkout.


Applications:
SER is type SE, Style R cable, used as an above ground service entrance cable, a panel feeder and in branch circuits. The cable is rated at 600 volts and 90°C for use in wet and dry locations. SER cables are LEAD FREE and RoHS compliant.

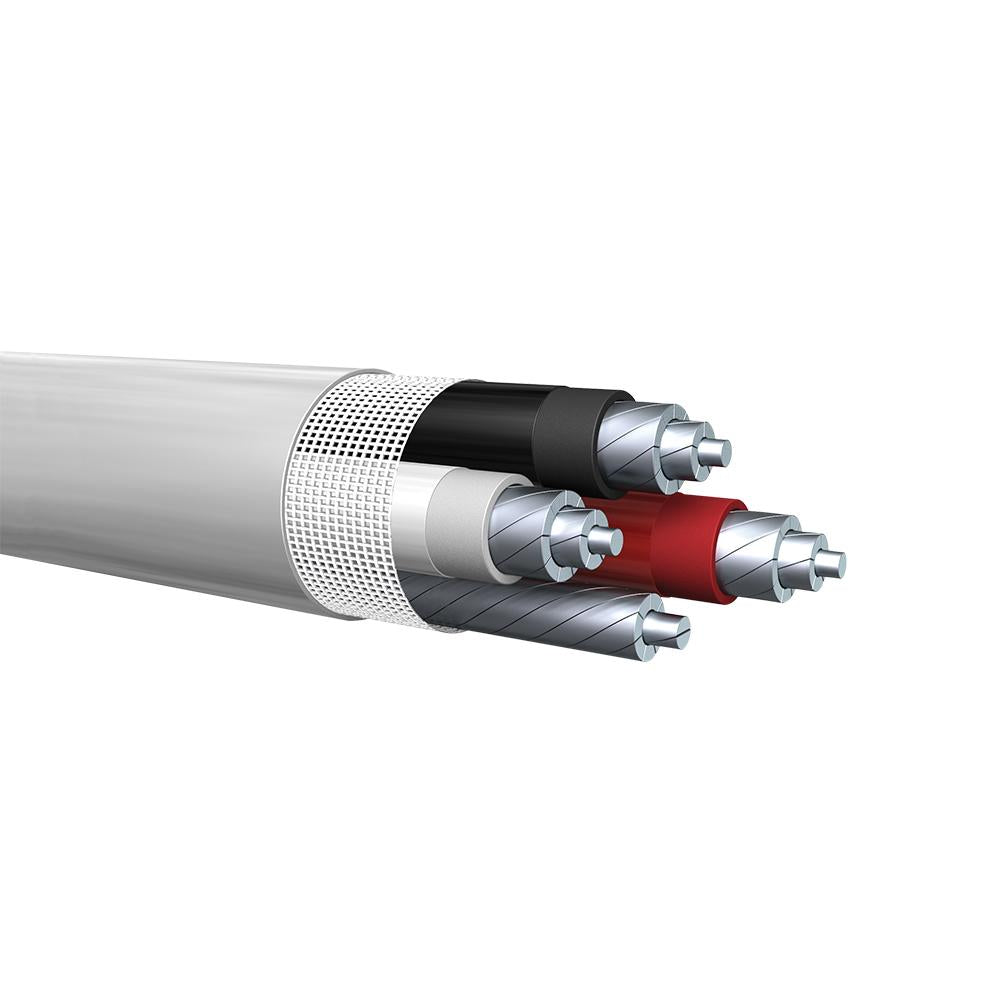

Construction:
Insulation - Color coded cross-linked polyethylene (XLPE).
Assembly - Insulated conductors are cabled with the bare ground wire. A flame retardant fiberglass reinforced binder tape assembles the core in a circular configuration

Standards:
- UL 854 Service Entrance Cable

Specificatons:
Conductor Size: 1/0 (3 total)
Bare Neutral Size: 2 AWG
Outside Diameter: 1.05 inches
Ampacity: 125 Amps
Net Weight: 0.55 pounds per foot
