4-4-4 Aluminum SER Cable with # 6 Ground Wire Cut to Order
Couldn't load pickup availability
Applications:
SER is type SE, Style R cable, used as an above ground service entrance cable, a panel feeder and in branch circuits. The cable is rated at 600 volts and 90°C for use in wet and dry locations. SER cables are LEAD FREE and RoHS compliant.

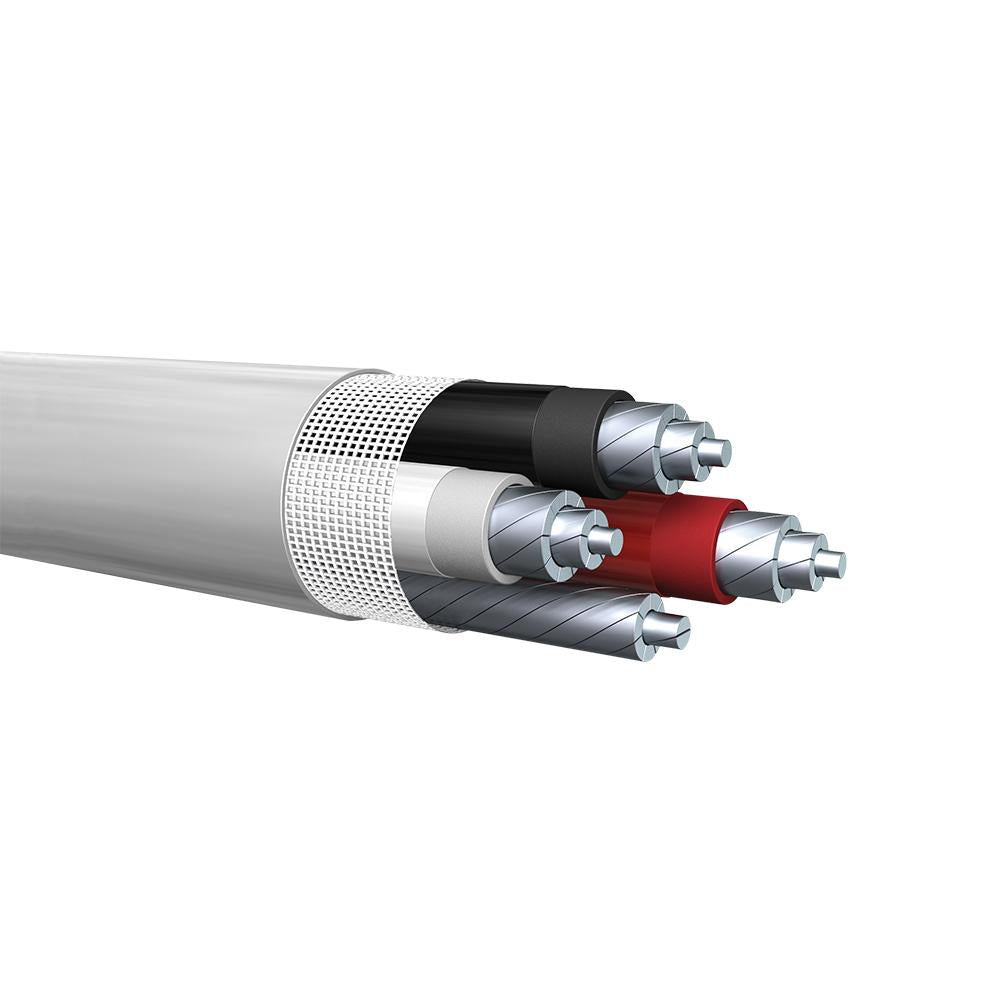

Construction:
Insulation - Color coded cross-linked polyethylene (XLPE).
Assembly - Insulated conductors are cabled with the bare ground wire. A flame retardant fiberglass reinforced binder tape assembles the core in a circular configuration
Standards:
- UL 854 Service Entrance Cable
Specificatons:
Conductor Size: 4 AWG (3 total)
Bare Neutral Size: 6 AWG
Outside Diameter: 0.823 inches
Ampacity: 75 Amps
Net Weight: 0.252 pounds per foot
