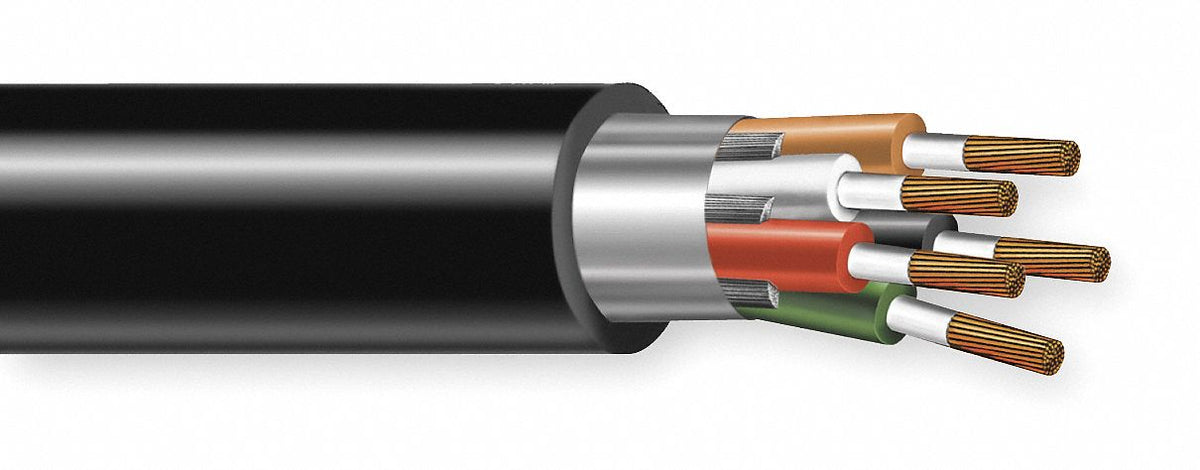

6/5 SOOW Portable Cord for 600V Application, RoHS Compliant

In stock - 173 items available
SKU: 23227
Regular price $8.40 / Foot
OR

Applications:
SOOW Flexible Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery

Features:
- Excellent resistance to oil and moisture
- Good tensile strength, elongation and aging characteristics
- High flexibility, excellent abrasion resistance and sunlight-resistant
- MSHA approved and RoHS Compliant
- Temperature range: -40ºC to +90ºC

Standards:
- MSHA Approved
- RoHS Compliant

Construction:
Conductors: 18 through 2 AWG fully annealed stranded bare copper per ASTM B-174
Insulation: Premium-grade, color-coded 90ºC EPDM

Specifications:
Size: 6 AWG
Number of Conductors: 5
Conductor Strand: 101/26
Insulation Thickness: 0.05 inches
Outside Diameter: 0.945 inches
Weight: 0.81 lbs per ft
Current Amps: 36

Color Code:
5 Conductors - Black, White, Red, Orange and Green
