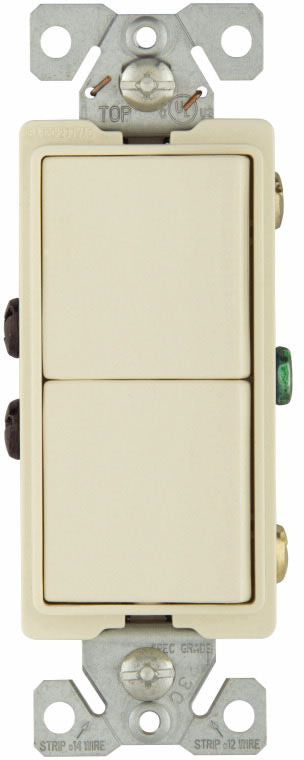

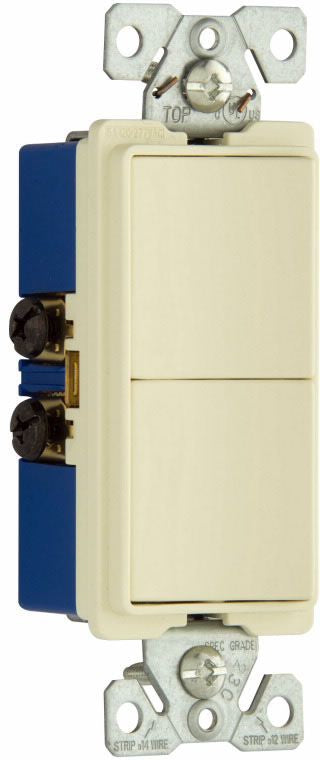

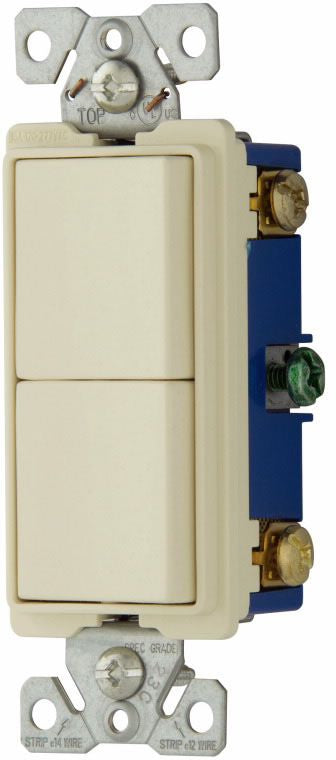

Arrow Hart 7728A-SP Decorator Combination Switch

Automatic Grounding Eliminates Need for Bonding Jumper in Metal Enclosures; Welded Construction Provides Superior Assembly Security Under Heavy Use; Smooth Face for Ease of Cleaning; Built-in Wire Stripper to Speed up Installation; Tri-Combo Head Terminal and Mounting Screws, Plus Easy-Access Grounding Terminal; Stippled Line and Ground Contacts Ensure Solid Contact; Ground Screw Clamp Provides Secure Wiring; Oversized Termination Screws for Simplified Wire Installation; Allowable Wire Size 14 to 12 AWG; RoHS Compliant

Specifications:

Type: Standard Rocker
Voltage Rating: 120/277 Volt AC
Current Rating: 15 Amp
Operation Type: (2) 1-Pole, Maintained
Wiring: Back, Side
Wall Plate Included: No
Material: Thermoplastic
Color: Almond
Size: 1.3 Inch Length x 1.08 Inch Width x 4.19 Inch Height
Application: Residential, Commercial
Approval: UL (Canada and US), NOM 426
