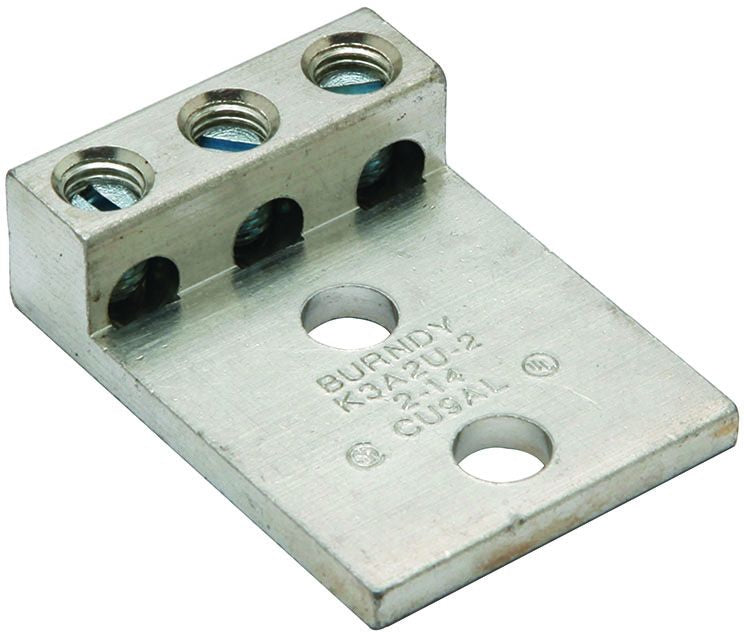

Burndy K3A2U2 Mechanical Cable Terminal Lug
Regular price
$27.90
Couldn't load pickup availability
Dual-Rated Three-Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; Universal Terminal; For Aluminum and Copper Conductors; RoHS Compliant
Specifications:
Number of Conductors: 3
Minimum Conductor Size: 14 AWG Stranded
Maximum Conductor Size: 2 AWG Stranded
Conductor Material: Aluminum/Copper
Screw Type: Slot
Material: Electro Tin Plated Aluminum Alloy
Number of Pad Holes: 2

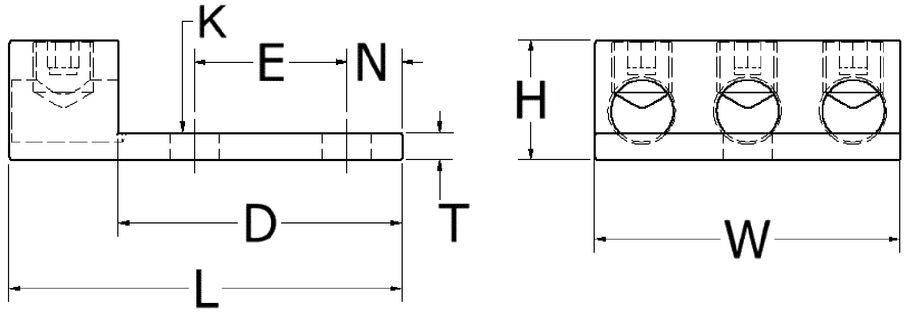

Pad Size: 1.63 Inch L x 1.64 Inch W x 0.19 Inch Thk
Stud Size: 5/16 Inch
Overall Length: 2.19 Inch
Approval: UL 468A/486B, CSA
