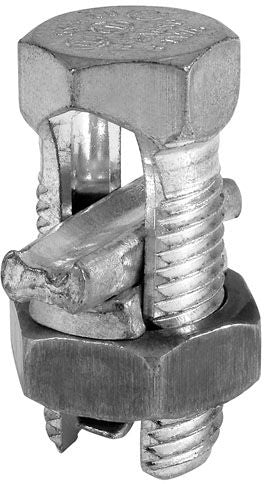

Ilsco SK-500 Split Bolt Connector
Regular price
$0.58
Couldn't load pickup availability
Provides Maximum Conductivity and High Breakage Resistance; Provides Low Contact Resistance; Precision Tooled Threads; Application Versatility; Suitable for Use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; RoHS Compliant
Specifications:
Voltage Rating: 2000 V
Installation: Split Bolt with Spacer Bar
Conductor Material: Copper
Minimum Run Conductor Size: 3/0 AWG Stranded
Maximum Run Conductor Size: 500 KCMIL
Minimum Tap Conductor Size: 1/0 AWG Stranded
Maximum Tap Conductor Size: 500 KCMIL
Material: Electro-Tin Plated High Strength Copper Alloy
Approval: UL 460C, CSA
