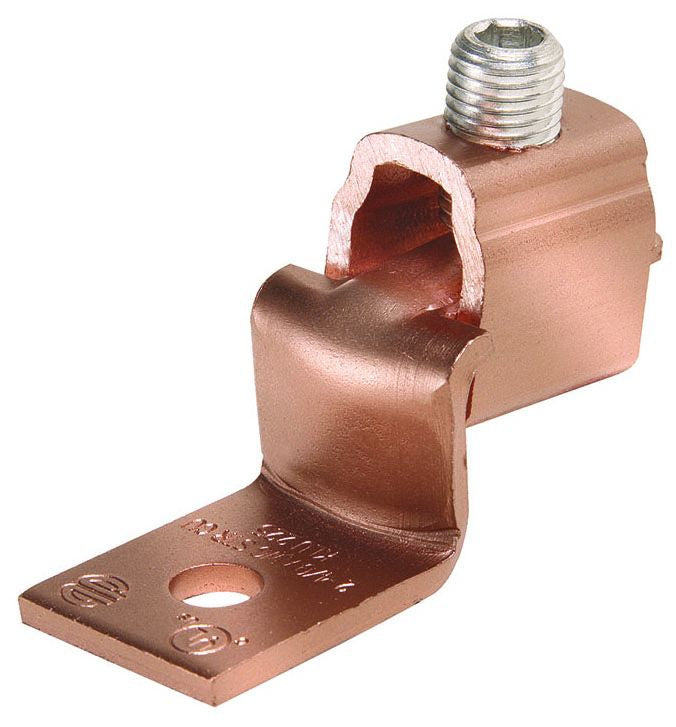

Burndy KLU125 Mechanical Cable Terminal Lug

Out of stock
SKU: 100980
Regular price $6.38
OR

High Copper Alloy Terminal with Offset Tongue for Joining a Wide Range of Cable to Equipment Pads or Bar; Easy to Install with Screwdriver or Wrench; Connector is Reusable; Plain Copper Finish; Convenient Range-Taking Design; One Conductor Accommodates Several Conductor Sizes; High Conductivity Copper Alloy; Long Lasting Reliable Contact; Compact Design; Easy to Use; Reduces Labor Time; Slot Robertson Screw, Hex Head/Hex Socket Bolt; No Special Installation Tools Required; Eliminates Over-Torquing/Potential Conductor Damage

Specifications:

Type: Set Screw
Number of Conductors: 1
Minimum Conductor Size: 2 AWG Stranded
Maximum Conductor Size: 1/0 AWG Stranded
Conductor Material: Copper
Pad Type: Offset
Screw Type: 3/8 UNF Slot
Material: Copper Alloy
Number of Pad Holes: 1
Pad Size: 0.63 Inch W x 0.11 Inch Thk
Stud Size: 1/4 Inch
Overall Length: 1.99 Inch
Approval: UL 467, UL (Canada and US)
