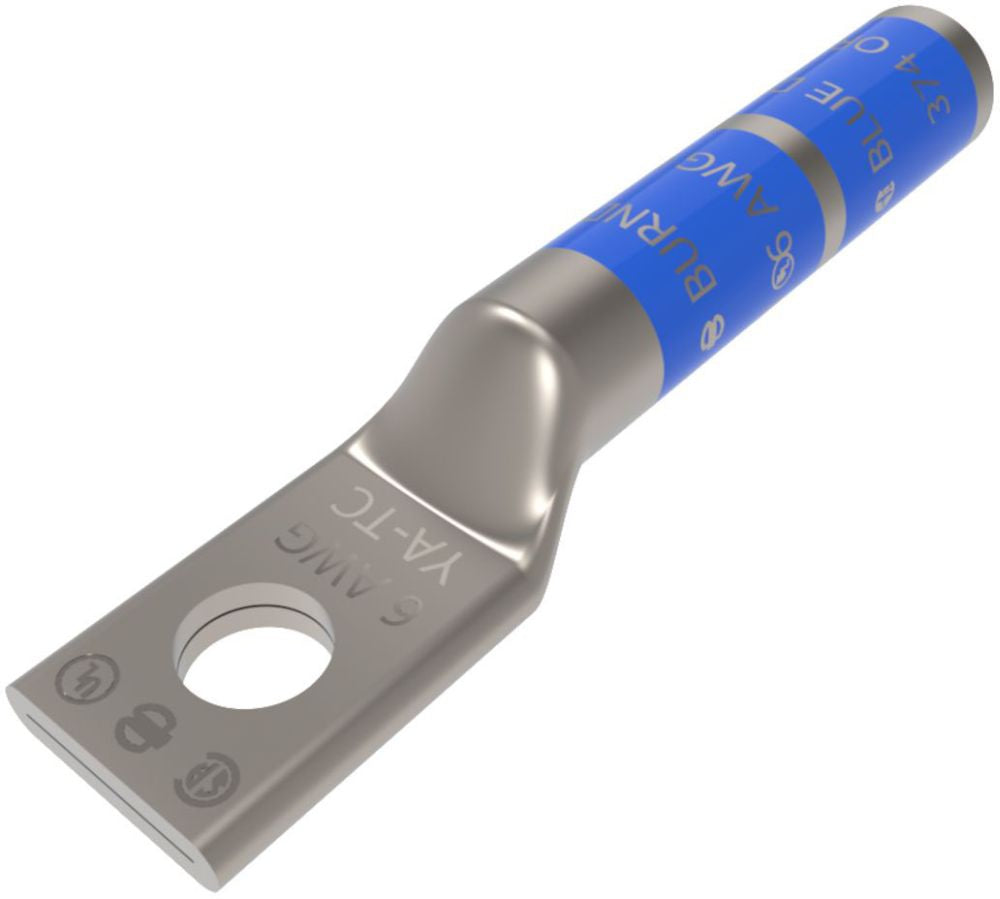

Burndy YA6C Compression Cable Lug

No Inspection Window is Ideal for More Corrosive Environments as the Barrel Transition is Not Open; Barrel is Designed with a Belled End Opening at the wire Entry to Ensure Smooth Insertion of Highly Flexible Standard Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 35 Kilovolt
Conductor Material: Copper
Conductor Size: 6 AWG Solid/Stranded (Code)
Barrel Type: Long, Straight, Non-Insulated
Barrel Length: 1.12 Inch
Pad Size: 0.41 Inch Width x 0.09 Inch Thickness
Number of Pad Holes: 1
Stud Size: 1/4 Inch
Color: Blue
Die Index: 7/374
Material: Electro Tin Plated Copper
Overall Length: 1.81 Inch
Approval: UL, CSA
