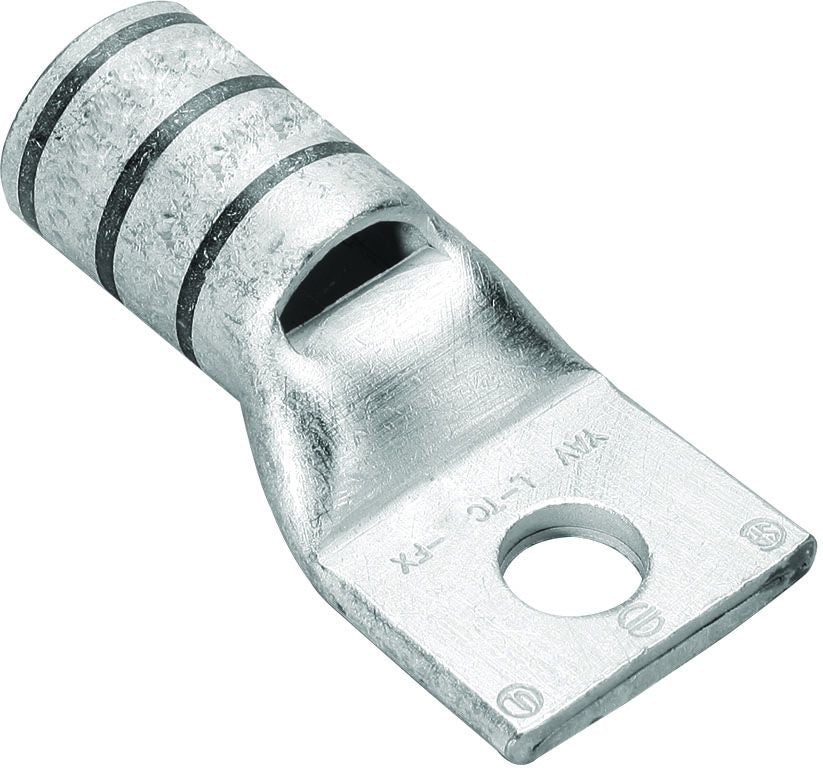

Burndy YAV6CLTC38FX Compression Cable Lug

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirements; Electro-Tin Plated Unless Otherwise Specified to Reduce Galvanic Corrosion (Bimetallic) and Resist Corrosive Elements; Connectors are Clearly Marked with Stamping and Barrel Color Coding; RoHS Compliant

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 61/24 Diesel Locomotive Cable, 6 AWG Class G/H/I (Weld Flex), 6 AWG Solid/Stranded
Barrel Type: Short, Standard, Straight
Barrel Length: 0.5 Inch
Pad Size: 0.58 Inch W x 0.06 Inch Thk
Number of Pad Holes: 1
Stud Size: 3/8 Inch
Color: Blue
Die Index: 7
Material: Electro-Tin Plated Copper
Overall Length: 1.61 Inch
Approval: UL, CSA
