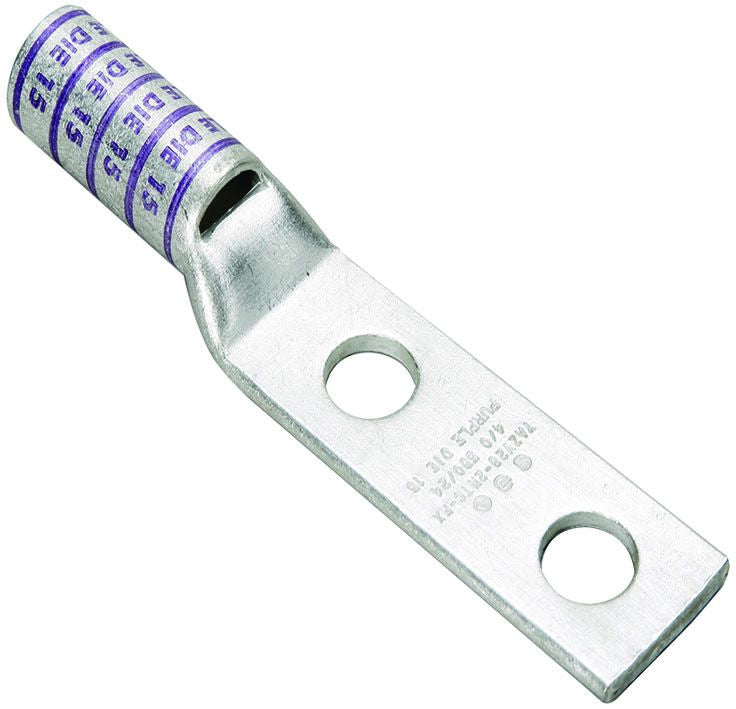

Burndy YAZ4C2N Compression Cable Lug

In stock - 20 items available
SKU: 101935
Regular price $14.63
OR

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Long Barrel Allows for an Increased Number of Crimps Which will Increase the Mechanical Strength of the Connection

Specifications:

Voltage Rating: 600 V to 35 kV
Conductor Material: Copper
Conductor Size: 40 (Navy), 4 AWG Stranded (Code)
Barrel Type: Long, Skived, Straight
Barrel Length: 1.12 Inch
Pad Size: 0.83 Inch W x 0.12 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Color: Gray
Die Index: 8/346
Material: Electro-Tin Plated Copper
Overall Length: 4.45 Inch
Approval: UL 468A/468B, CSA
