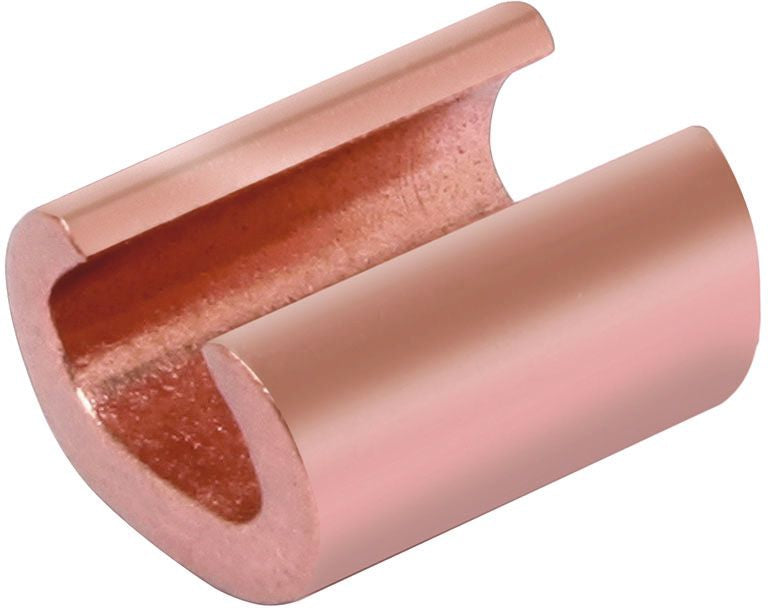

Burndy YC28C2 Compression Tap Connector

In stock - 14 items available
SKU: 102330
Regular price $39.23

Range-Taking Conductor; Lowers Inventory Requirements; Compact Size; Easy to Tape and Insulate Connection; Manufactured from High Conductivity Wrought Copper Provides Low Resistance and Excellent Electrical Conductivity; Economical Provides Low Installed Cost; RoHS Compliant


Voltage Rating: 600 Volt to 35 Kilovolt
Shape: C
Conductor Material: Copper
Minimum Run Conductor Size: 3/0 AWG Stranded
Maximum Run Conductor Size: 4/0 AWG Stranded
Minimum Tap Conductor Size: 6 AWG Solid
Maximum Tap Conductor Size: 2 AWG Stranded
Die Index: F/D3
Body Material: Wrot Copper
Approval: UL, CSA
