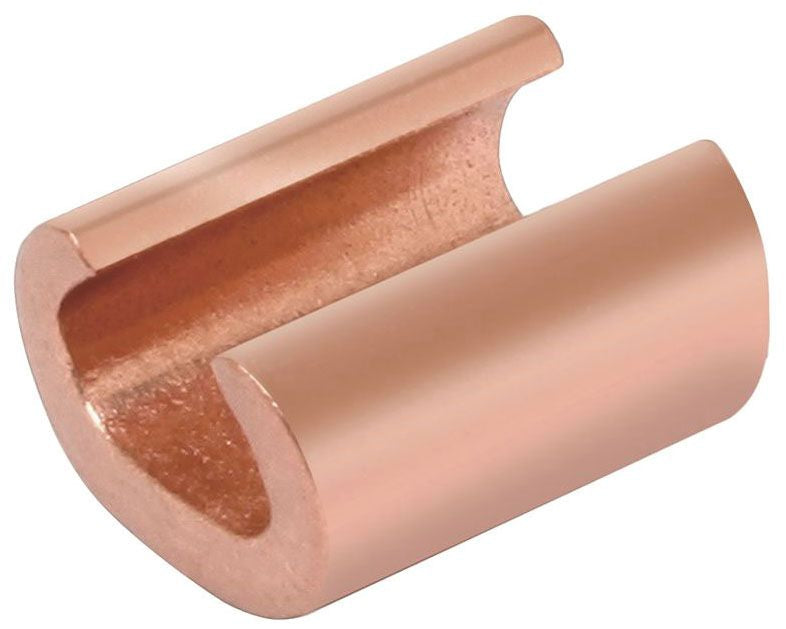

Burndy YC28C28 Compression Tap Connector

Out of stock
SKU: 102334
Regular price $39.23
OR

Range-Taking Conductor; Lowers Inventory Requirements; Compact Size; Easy to Tape and Insulate Connection; Manufactured from High Conductivity Wrought Copper Provides Low Resistance and Excellent Electrical Conductivity; Economical Provides Low Installed Cost; RoHS Compliant

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Shape: C
Conductor Material: Copper
Minimum Run Conductor Size: 3/0 AWG Stranded
Maximum Run Conductor Size: 4/0 AWG Stranded
Minimum Tap Conductor Size: 3/0 AWG
Maximum Tap Conductor Size: 4/0 AWG Stranded
Die Index: F/D3
Body Material: Wrot Copper
Approval: UL, CSA
