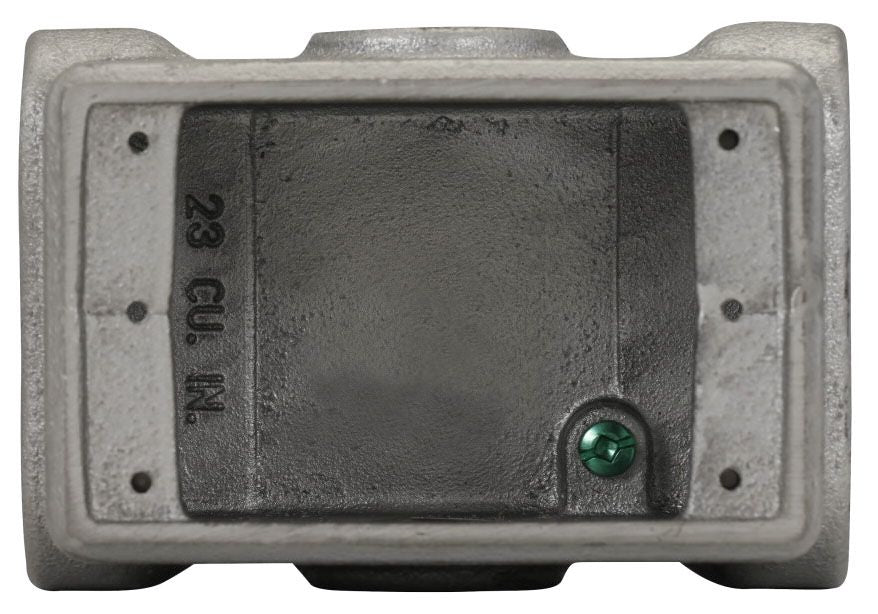

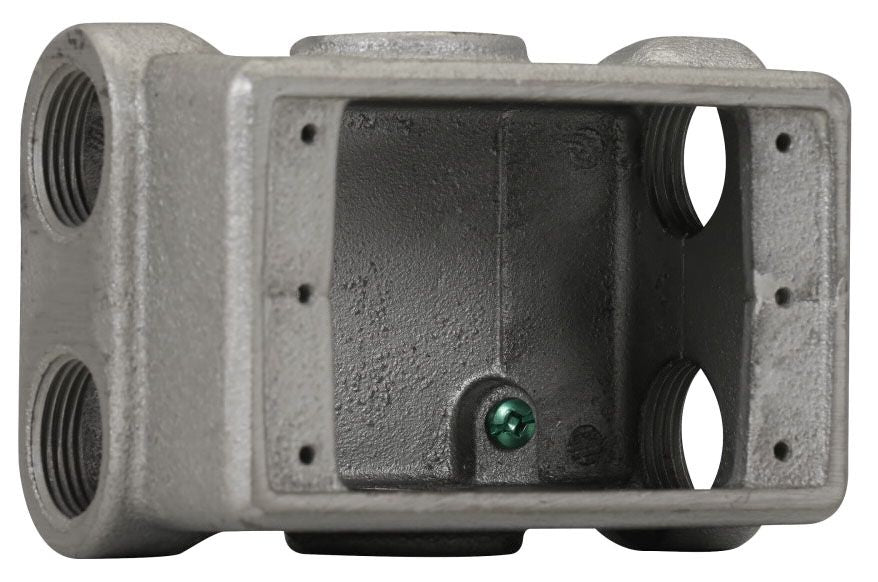

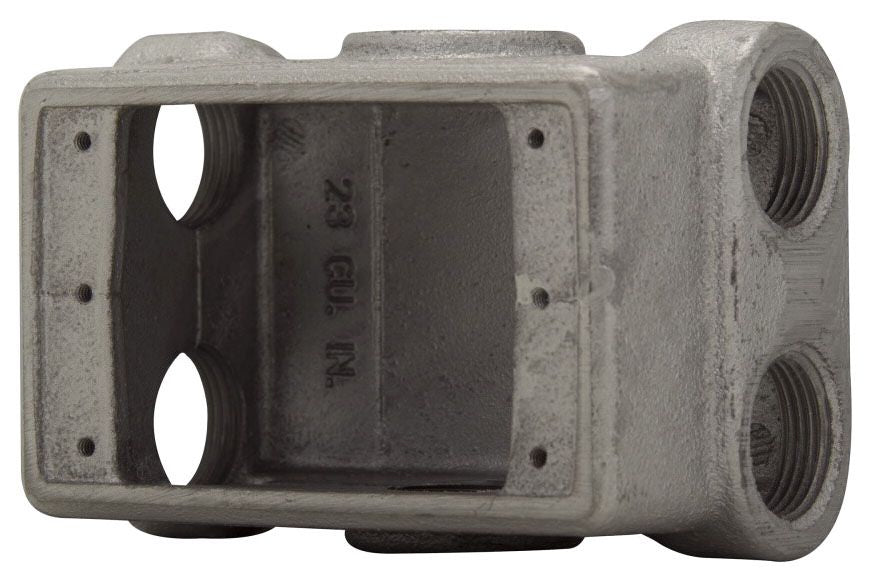

Crouse-Hinds FDXC219 Cast Device Box

Crouse-Hinds series FS and FD device boxes are installed in non-hazardous area conduit systems to accommodate wiring devices, act as pull boxes or provide openings for taps and splices. They are suitable for use in wet locations when used with gasketed covers. FS and FD device boxes are available in two box depths with a wide variety of gang configurations, hub configurations and hub sizes. They are manufactured in cast iron, aluminum, stainless steel and malleable iron. Malleable iron boxes are also available with a hot dip galvanized finish for added corrosion protection against road salt and other harsh environmental factors.

Specifications:

Height: 4-25/32 Inch
Width: 3-1/4 Inch
Depth: 2-25/32 Inch
Number of Gangs: 1
Number of Hubs: 6
Hub Location: (1) Each Side, (2) Each End
Hub Size: 3/4 Inch
Material: Electrogalvanized Aluminum Acrylic Painted Iron Feraloy
Shape: Deep
Configuration Type: FDXC
Mounting: Flush
Mounting Hardware: Not Included
Approval: UL 514A, CSA 22.2
