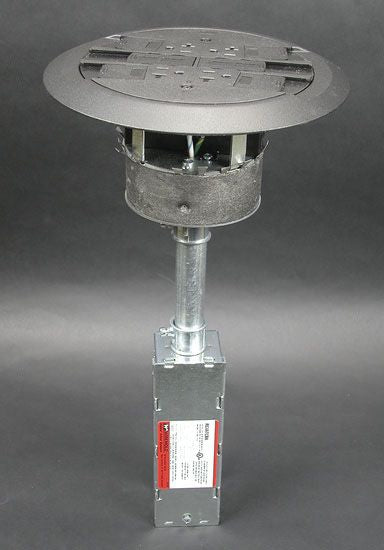

Wiremold RC4ATCAA Poke Through Device Assembled Unit

  • Sale
  • Regular price $476.87
  • 1 available
Shipping calculated at checkout.


Unit Includes Four Prewired 20 Ampere Receptacles; Each Duplex Receptacle is Wired as Separate Circuit; The Duplex can be Wired as a Standard Receptacle or Isolated Ground; Aluminum and Brass Flanges Shipped with Black Slide Cover; Modular Jacks; Assembled with Scrub Water Gasket; For Use on Tile or Carpet Floors; Rc4 Series Poke-Through Devices Require a 4 Inch Diameter Hole; Not Designed to Work with Bare Concrete or Terrazzo; Floor Covering Thickness 1/8 Inch Minimum; RoHS Compliant

Specifications:

Type: Flush, Multi-Service
Cover/Service Head Configuration: 20 Ampere Duplex Receptacle/Isolated Ground, (4) Discrete Keystone Connector
Receptacle Current Rating: 20 Ampere
Junction Box Included: Yes
Capacity: 24.5 Cu Inch
Cored Hole Diameter: 4 Inch
Finish: Aluminum
Size: 8-1/4 Inch Dia x 16-3/8 Inch H
Cover Mounting: Carpet/Tile Floor
Approval: UL (Canada and US)
