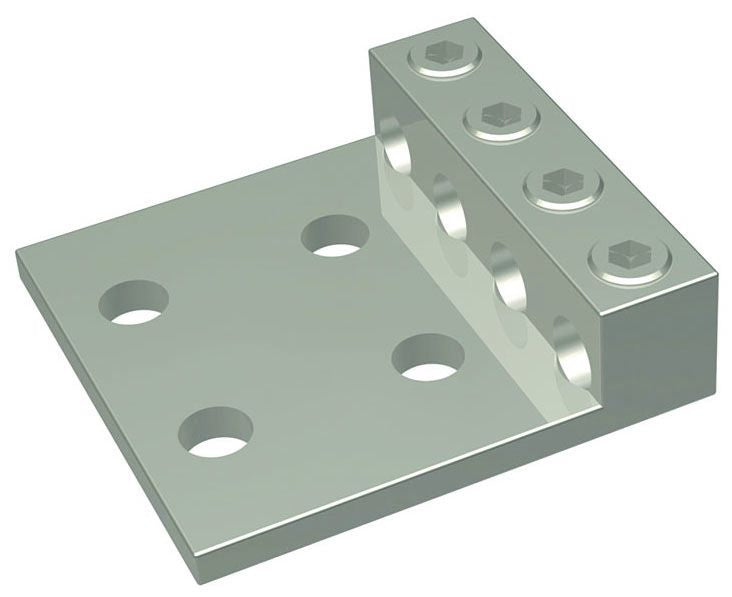

Burndy K4A29U4N Mechanical Cable Lug
Regular price
$116.33
Couldn't load pickup availability
These Dual-Rated Four Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro-Tin Plated to Provide Low Contact Resistance; RoHS Compliant
Specifications:
Type: Universal, Dual Rated
Number of Conductors: 4
Minimum Conductor Size: 6 AWG Stranded
Maximum Conductor Size: 250 KCMIL Stranded
Conductor Material: Copper/Aluminum
Material: Electro Tin Plated High Strength Aluminum Alloy
Number of Pad Holes: 4 NEMA

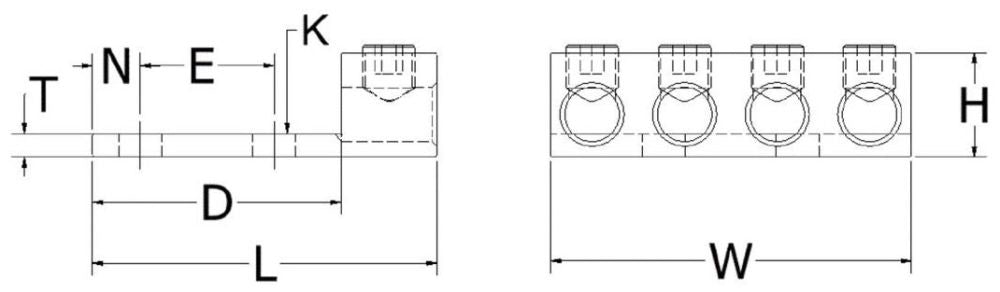

Pad Size: 3.16 Inch Length x 3.69 Inch Width x 0.31 Inch Thickness
Stud Size: 1/2 Inch
Overall Length: 4.25 Inch
Approval: UL 467, CSA
