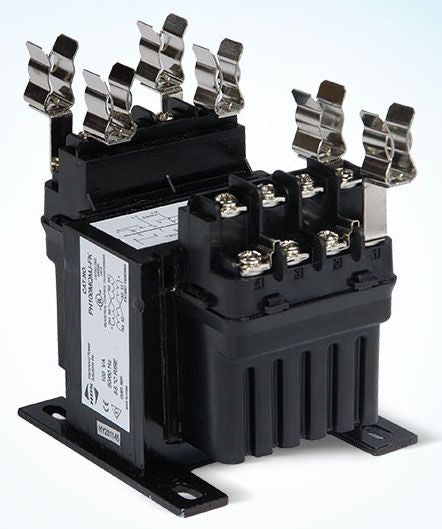

Hammond Power Solutions PH50MGJ Encapsulated Industrial Control Transformer

The HPS Imperator series of machine tool rated industrial control transformers are specifically designed to meet high inrush industrial applications where electromagnetic components such as relay, solenoids and magnetic motor starters are used. With 11 standard voltage groups, a Volt Amp range from 50 Volt Amp to 1500 Volt Amp and available with standard secondary and optional primary fuse kits, the HPS Imperator series provides the perfect solution for any application. The HPS Imperator's unique terminal block design allows for the quick and easy installation of standard secondary or optional primary 13/32" x 1-1/2" midget/type CC fuse clips on every unit. This is the simplest and most inexpensive fusing installation provided on any industrial control transformer in the market today.

Specifications:

Primary Voltage: 380/277/208 V
Secondary Voltage: 120 x 240 V
Frequency Rating: 50/60 Hz
Power Rating: 50 VA
Insulation Class: 105
Terminal Type: Screw
Temperature Rise: 55 Deg C
Mounting: 0.22 Inch L x 0.44 Inch W Slot
Size: 3.25 Inch W x 3.88 Inch D x 3.56 Inch H
Applicable Standard: ANSI 506, IEC 61558, NEMA ST-1
Approval: UL 506, UL (Canada and US), CE
