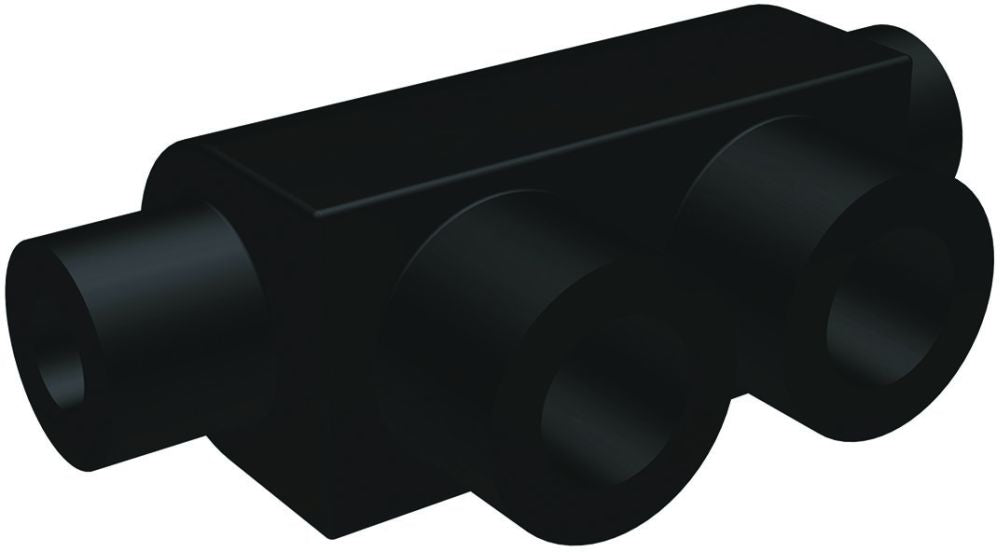

Burndy 1PBS500 Mechanical Multiple Tap Connector

Out of stock
SKU: 104247
Regular price $53.78

Tap connections are made quickly and easily with the UNITAP line of connectors. UL486A-B Listed. Dual-rated for any stranded copper or stranded aluminum applications. UL Listed 600 Volts, -40° C to 135° C Operating Temperature.


Voltage Rating: 600 V
Number of Ports: 2
Cable Entry: In-Line
Conductor Material: Aluminum/Copper
Minimum Conductor Size: 6 AWG (Aluminum), 6 AWG Stranded (Copper)
Maximum Conductor Size: 500 KCMIL (Aluminum), 500 KCMIL Stranded (Copper)
Body Material: Plastisol Covered AL6061-T6 Aluminum
Approval: UL 486B, CSA
