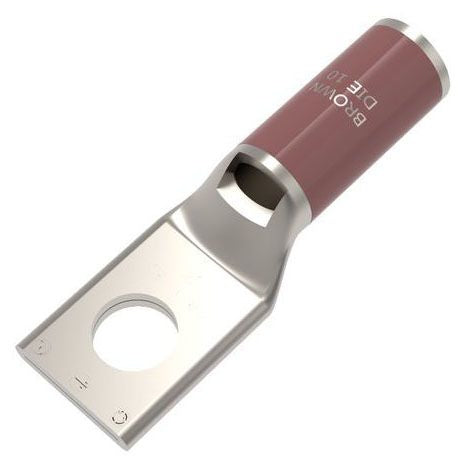

Burndy YA2CLBOX Compression Terminal

Out of stock
SKU: 104495
Regular price $10.96
OR

Inspection Window Allows for Visual Verification that the Wire has been Fully Inserted Prior to Crimping the Lug; Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Strands; Connectors are Clearly Marked with Stamping and Barrel Color Coding; Short/Standard Length Barrel is Recommended for Installations with Limited Space Requirement

Specifications:

Voltage Rating: 600 Volt to 35 Kilovolt
Conductor Material: Copper
Conductor Size: 2 AWG (Stranded)
Barrel Type: Short, Standard, Straight, Chamfered Skived Entry
Barrel Length: 0.88 Inch
Pad Size: 0.61 Inch Width x 0.11 Inch Thickness
Number of Pad Holes: 1
Stud Size: 5/16 Inch
Color: Brown
Die Index: 10
Material: Electro Tin Plated Copper
Overall Length: 1.93 Inch
Approval: UL, CSA
