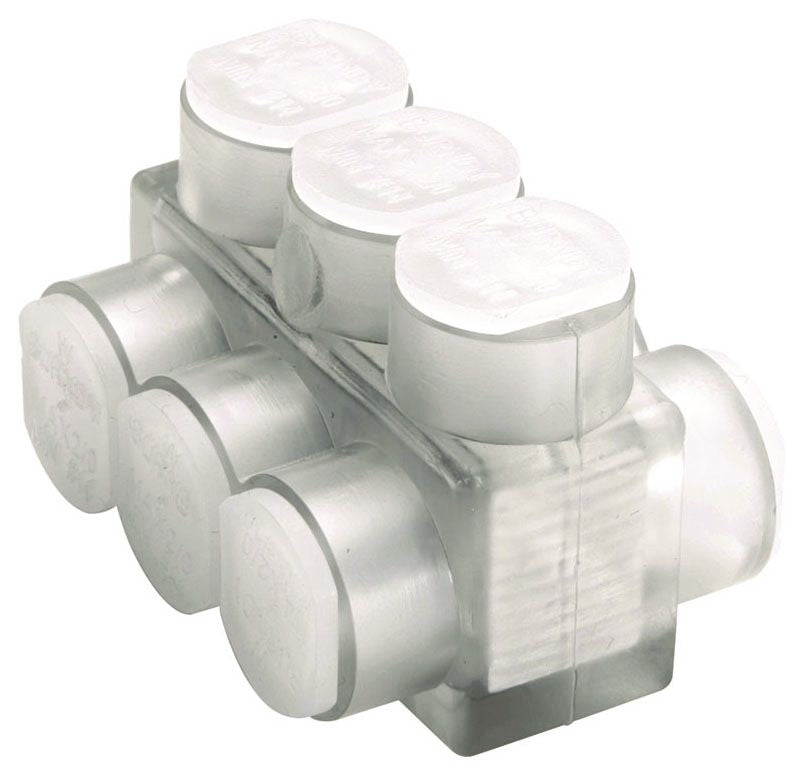

Tap connections and in-line splice/reductions are made quickly and easily with the UNITAP line of clear insulated connectors for code conductor. UL486B Listed. Dual-rated AL9CU for any stranded copper or stranded aluminum applications. 600 Volt, 90° C. Featuring multiple configurations suitable for most any application.

Specifications:

Voltage Rating: 600 Volt
Number of Ports: 6
Cable Entry: 2-Sided Entry
Conductor Material: Aluminum/Copper
Minimum Conductor Size: 10 AWG Stranded
Maximum Conductor Size: 350 KCMIL Stranded
Body Material: Aluminum
Approval: UL, CSA
