Field Installable External Accessories; Series Connected Short Circuit Ratings; Thermal Magnetic and Solid States

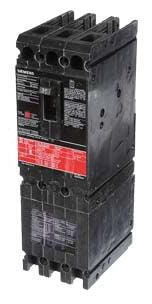

Specifications:

Type: Thermal Magnetic, Fuseless Current Limiting
Frame Type: ED
Voltage Rating: 600 Volt AC, 500 Volt DC
Maximum AC Voltage Rating: 600 Volt
Maximum DC Voltage Rating: 500 Volt
Current Rating: 100 Amp
Number of Poles: 3
Interrupting Rating: 200 Kiloamp at 240/480 Volt AC (UL/CSA), 100 Kiloamp at 600 Volt AC (UL/CSA), 50 Kiloamp at 500 Volt DC (UL/CSA)
Terminal Type: Line/Load Lug
Size: 3 Inch Width x 4.56 Inch Depth x 9.58 Inch Height
Approval: UL 489, CSA C22.2, IEC 947-2
