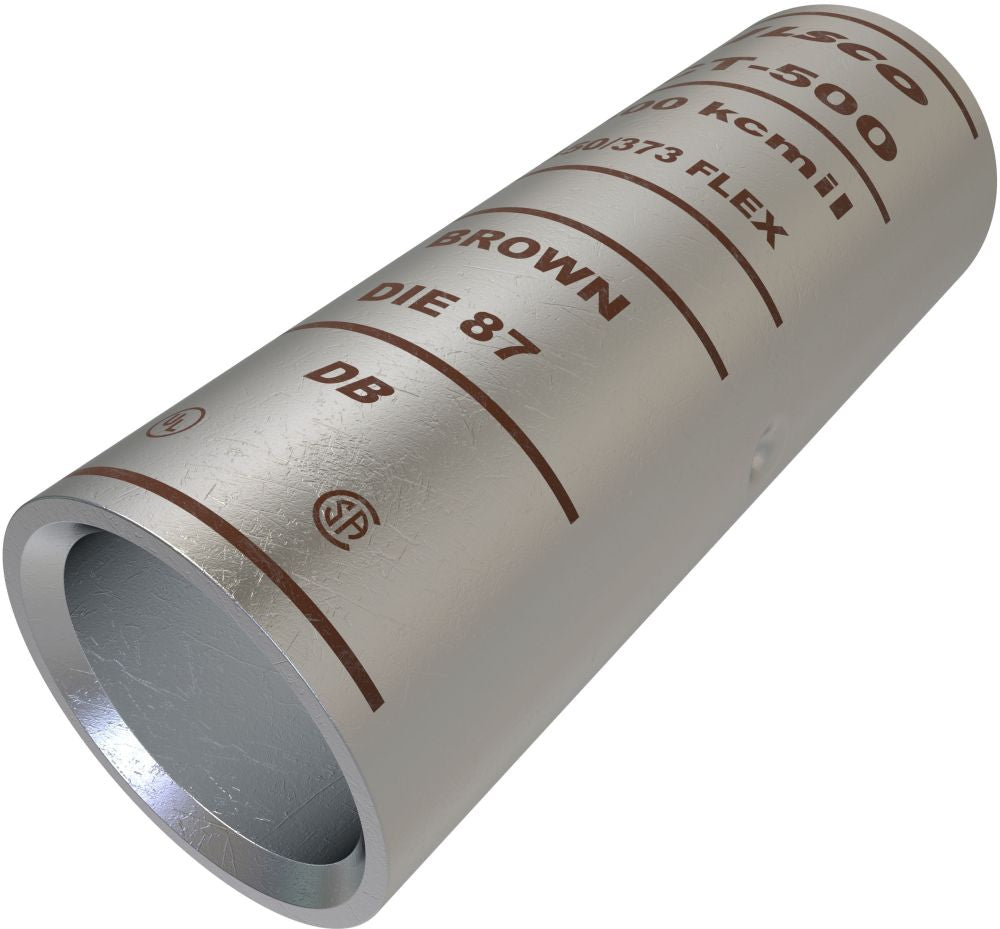

Ilsco CT-500 Compression Cable Sleeve
Regular price
$0.18
Couldn't load pickup availability
Manufactured from High Strength Seamless Copper Tubing Offers Maximum Conductivity and Excellent Crimping Characteristics; Electro Tin Plated Provides Low Contact Resistance; Chamfered Entry for Easy Conductor Insertion; Color Coded Identifies the Proper Compression Die; Application Versatility; Reduces Inventory Requirements; RoHS Compliant
Specifications:
Type: Center Wire Stop
Voltage Rating: 35 KV
Conductor Size: 500 KCMIL
Conductor Material: Copper
Color Code: Brown
Barrel Type: Short with Chamfered End
Length: 2.875 Inch
Inner Diameter: 0.828 Inch
Outer Diameter: 1.062 Inch
Body Material: Electro-Tin Plated High Strength Seamless Copper
Approval: UL 453G, UL 486A/B, CSA
